Dialog

Modal dialogs — a trigger button that presents a centered modal panel.

Public types

Public functions

Dialog

ModalContainer

ModalScrim

DialogContent

Detailed description

Three cooperating types cover the common dialog use-case. Dialog is the high-level entry point: a Button (or custom trigger) that, on activation, presents a ModalContainer above a full-viewport dimming ModalScrim. DialogContent is the convenience body layout — a VStack with an optional title, supporting text, scrollable body slot, and a footer slot separated by a Divider.

When to use

• Dialog::new(label).content(|| …) for the common "button opens dialog" pattern.
• Dialog::new(label).trigger(my_icon_button).content(|| …) to use a custom widget as the trigger instead of the default Button.
• ModalContainer::new(content) directly when you need to present a modal from handler code via ctx.present_modal(ModalRequest::…) rather than a persistent trigger.

Accessibility

ModalContainer is a Role::Dialog node and announces set_modal(). Its accessible name defaults to the DialogContent title (via Widget::accessible_title_hint) or falls back to the localized a11y_dialog_name message; pass .title(tr!(…)) to the container for an explicit override. When the content's own node is already a dialog (a MessageBox's Role::AlertDialog, a CommandPalette's Role::Dialog), the container publishes no node of its own, so a reader meets one dialog and hears its title once. The trigger button advertises HasPopup::Dialog and set_expanded tracks whether the modal is currently open.

use teksilo_widgets::dialog::{Dialog, DialogContent};
use teksilo_i18n::lit;

let _d = Dialog::new(lit!("Open settings"))
    .content(|| {
        DialogContent::new()
            .title(lit!("Settings"))
            .supporting_text(lit!("Adjust your preferences below."))
    });

Touch and pen

The trigger is a Button (or, with .trigger(..), the caller's widget wrapped in the same activation handlers), and both actuate on the release. The footer's buttons are buttons.

The scrim is the one full-viewport node that has to receive exactly the presses that land on it, so it says no_hit_slop outright rather than relying on the slop pass's size formula to exclude it by arithmetic — see scrim_hit_targeting_tests below. Its dismissal is a tap, so it too waits for the release.

Density

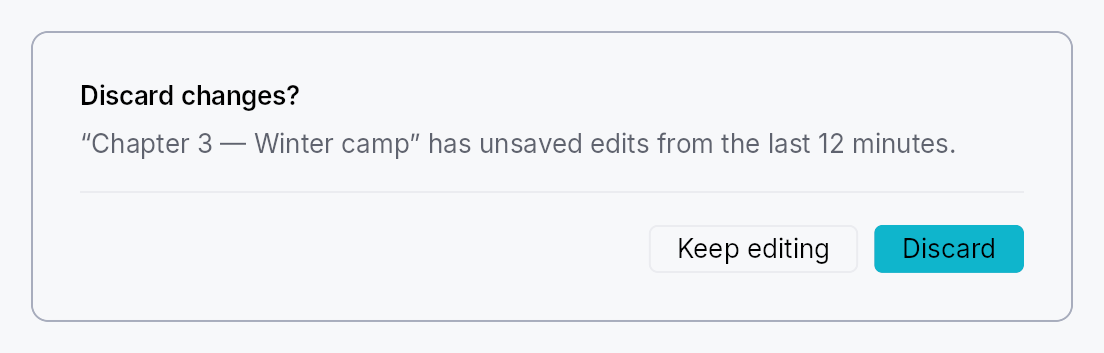

The picture above is the widget at TargetDensity::Compact, the mouse-and-keyboard ladder. Below is the same subject on the same canvas with only the ladder changed, so what moves is the density and nothing else — where the subject no longer fits, that is what the denser targets cost it at that size. See docs/density-and-targets.md.

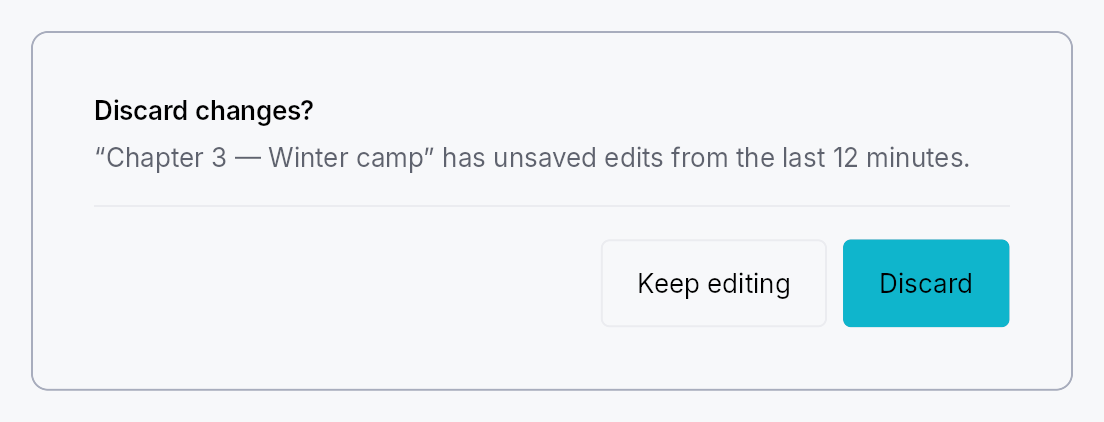

Touch

API reference

📖 Full rustdoc API for this module

pub struct ModalContainer

Import: use teksilo::widgets::ModalContainer;

Rounded panel chrome that wraps a modal dialog's content widget.

All visual dimensions (padding, corner radius, min-width, shadow) are owned by the active DialogStyle; per-instance overrides are available via Self::padding and Self::min_width.

#![allow(unused)]
fn main() {
pub struct ModalContainer { /* fields */ }
}

Methods

pub fn new(content: impl Widget + 'static) -> Self

Wrap content inside a modal panel with default chrome.

pub fn padding(mut self, padding: f32) -> Self

Override the content padding (logical pixels) from the theme default.

pub fn min_width(mut self, min_width: f32) -> Self

Override the minimum panel width (logical pixels) from the theme default.

pub fn style(mut self, style: impl teksilo_core::styles::DialogStyle) -> Self

Per-call style override for the modal panel chrome. Replaces the theme-wide default DialogStyle for just this container.

pub fn title(mut self, title: impl Into<LocalizedString>) -> Self

Accessible title for the dialog, announced as the dialog's name when the content paints no title of its own. Content that does — e.g. DialogContent::title — names the dialog by pointing at that label and wins over this string, so the two should match. Content that is itself a dialog names itself, and the container then publishes no node for this title to name.

pub struct ModalScrim

Import: use teksilo::widgets::ModalScrim;

Full-viewport dimming scrim painted behind a ModalContainer.

Mounted by the modal-presentation pipeline (teksilo-app) as a separate OverlayPlacement::FullViewport overlay pushed BEFORE the centered modal overlay so it z-orders below the panel. The chrome itself is delegated to the active DialogStyle::make_scrim; clicking the scrim dismisses the linked modal when the modal's ModalCloseBehavior permits click-outside dismissal.

The dismissal cascade is wired via OverlayManager::set_parent_overlay AFTER both overlays are pushed — the scrim's parent_overlay is set to the modal's id, so any dismiss of the modal cascades through dismiss_immediate and also dismisses the scrim. The scrim's own dismiss behavior is Manual — it never dismisses itself directly.

#![allow(unused)]
fn main() {
pub struct ModalScrim { /* fields */ }
}

Methods

pub fn new() -> Self

Build a new scrim; wire it with Self::dismiss_target and Self::click_to_dismiss after construction.

pub fn style(mut self, style: impl teksilo_core::styles::DialogStyle) -> Self

Per-call style override for the scrim chrome. Replaces the theme-wide default DialogStyle for just this scrim.

pub fn dismiss_target(mut self, target: Rc<Cell<Option<OverlayId>>>) -> Self

Handle to the modal-overlay id the scrim dismisses on click. The framework fills this AFTER the modal is pushed (see the in-tree modal pipeline in teksilo-app).

pub fn click_to_dismiss(mut self, enabled: bool) -> Self (default: false)

Enable click-to-dismiss on the scrim. Should mirror whether the modal's ModalCloseBehavior permits click-outside dismissal.

pub struct DialogContent

Import: use teksilo::widgets::DialogContent;

Convenience body layout for a modal dialog: optional title, supporting text, scrollable body slot, and a Divider-separated footer row.

#![allow(unused)]
fn main() {
pub struct DialogContent { /* fields */ }
}

Methods

pub fn new() -> Self

Create an empty dialog body with no sections set.

pub fn title(mut self, title: impl Into<LocalizedString>) -> Self (default: None)

Bold title shown at the top of the content area. Also propagated to the enclosing ModalContainer via accessible_title_hint.

pub fn supporting_text(mut self, text: impl Into<LocalizedString>) -> Self (default: None)

Secondary description text shown below the title.

pub fn body(mut self, body: impl teksilo_core::IntoTeksiChild) -> Self

Main scrollable content slot (any widget).

pub fn footer(mut self, footer: impl teksilo_core::IntoTeksiChild) -> Self

Footer slot separated from the body by a Divider (typically action buttons like "OK" / "Cancel").

pub struct Dialog

Import: use teksilo::widgets::Dialog;

A trigger button that presents a modal dialog when activated.

Renders as a Button by default; call .trigger(w) to replace it with any widget. The content is lazily constructed by a factory closure each time the dialog opens — no persistent widget subtree is kept while the dialog is closed.

#![allow(unused)]
fn main() {
pub struct Dialog { /* fields */ }
}

Methods

pub fn new(label: impl Into<LocalizedString>) -> Self

Build a dialog trigger with label as the button text and accessible name.

pub fn content<W, F>(mut self, factory: F) -> Self where W: Widget + 'static, F: Fn() -> W + 'static,

Factory closure that builds the dialog's content each time it opens. Required — the dialog panics at build time if no factory is set.

pub fn variant(mut self, variant: ButtonVariant) -> Self

Visual style of the default trigger button. Has no effect when .trigger(…) replaces the button with a custom widget.

pub fn enabled(mut self, enabled: impl Into<Prop<bool>>) -> Self

Enable or disable the trigger button, statically or reactively (default true).

pub fn presentation(mut self, presentation: ModalPresentation) -> Self

Override the modal presentation mode (default ModalPresentation::Auto).

pub fn close_behavior(mut self, close_behavior: ModalCloseBehavior) -> Self

Override how the dialog may be closed (default EscapeOrClickOutside).

pub fn trigger(mut self, trigger: impl teksilo_core::IntoTeksiChild) -> Self

Replace the default Button trigger with a custom widget. The widget receives the same tap / key / AT-action handlers as the button would.
