PasswordField

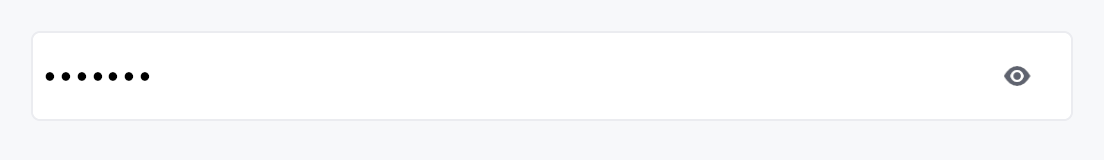

PasswordField — secure single-line text entry with a reveal toggle, masking, Caps Lock warning, and clipboard protection.

A thin, ergonomic preset over a secure TextInputField composed SpinBox-style: the field + an embedded reveal button live inside one bordered frame with a unified focus halo. Masking happens at the text-engine layer (one echo glyph per source char), so the plaintext never reaches the shaper or glyph atlas while masked, and caret / selection / hit-test stay correct.

Feature parity target: Qt QLineEdit echo modes, SwiftUI SecureField, WinUI PasswordBox / PasswordRevealMode, and the Android password_toggle.

Example

let password = ctx.signal(String::new());
PasswordField::new(password.clone())
    .label(tr!(password()))               // or .label(lit!("Password"))
    .placeholder(tr!(password_hint()))    // i18n-first; `_literal` twins bypass i18n
    .validator(|s| if s.len() >= 8 {
        ValidationOutcome::Valid
    } else {
        ValidationOutcome::Invalid { message: "Too short".into() }
    })

Builder methods at a glance

placeholder, label, enabled, read_only, max_length, char_filter, validator, on_submit_fn, on_blur_fn, min_width, variant, style, echo_char, echo_mode, reveal_mode, revealed, allow_copy, caps_lock_warning, at_reveal_policy, tooltip, rich_tooltip_key, rich_tooltip_content, rich_tooltip, composite_tooltip, revealed_signal, text

API reference

📖 Full rustdoc API for this module

pub enum RevealMode

How the reveal affordance behaves. Mirrors WinUI's PasswordRevealMode.

#![allow(unused)]
fn main() {
pub enum RevealMode { /* variants */ }
}

Variants

• Toggle — A click (or Space / Enter while focused) flips between masked and revealed. Backed by IconButton::visibility_toggle; fully keyboard- and screen-reader-accessible. (Default.)
• Hold — Press-and-hold to reveal, release to re-mask (WinUI "Peek"). Pointer-oriented; prefer Toggle for keyboard accessibility.
• None — No reveal button — the field is always masked per its EchoMode.

pub struct PasswordField

Secure single-line text entry. See the module docs.

#![allow(unused)]
fn main() {
pub struct PasswordField { /* fields */ }
}

Methods

pub fn new(password: Signal<String>) -> Self

Construct a secure field bound to password.

pub fn placeholder(mut self, text: impl Into<LocalizedString>) -> Self

Placeholder shown when empty. Never masked.

pub fn label(mut self, label: impl Into<LocalizedString>) -> Self

Accessible name, applied to the Role::PasswordInput field node. Strongly recommended for screen-reader users.

pub fn enabled(mut self, enabled: impl Into<Prop<bool>>) -> Self

Set the enabled state, statically or reactively. Forwarded to the arena at build time — a bound Signal<bool> updates live as it changes.

pub fn read_only(mut self, read_only: bool) -> Self

Read-only: selection works, edits don't.

pub fn max_length(mut self, max_length: usize) -> Self

Hard cap on length in chars.

pub fn char_filter(mut self, f: impl Fn(char) -> bool + 'static) -> Self

Per-character input filter (applied to keystrokes, IME commits, and paste).

pub fn validator(mut self, f: impl Fn(&str) -> ValidationOutcome + 'static) -> Self

Commit-time validator (Enter / blur). Drives the inline validation strip and aria-invalid.

pub fn on_submit_fn( mut self, f: impl Fn(&mut teksilo_core::widget::EventContext) + 'static, ) -> Self

Fired on Enter (focus stays put).

pub fn on_blur_fn( mut self, f: impl Fn(&mut teksilo_core::widget::EventContext) + 'static, ) -> Self

Fired once per focus-loss.

pub fn min_width(mut self, width: f32) -> Self

Minimum frame width (logical px). Default 65.

pub fn variant(mut self, variant: TextInputVariant) -> Self

Frame variant (Outlined / Filled / Underline / Bare).

pub fn style(mut self, style: impl TextInputStyle) -> Self

Per-instance style override.

pub fn echo_char(mut self, c: char) -> Self

Override the masking glyph (default '•').

pub fn echo_mode(mut self, mode: EchoMode) -> Self

Set the EchoMode (default EchoMode::Masked).

pub fn reveal_mode(mut self, mode: RevealMode) -> Self

Set the RevealMode (default RevealMode::Toggle).

pub fn revealed(mut self, revealed: Signal<bool>) -> Self

Bind an external reveal signal (shared with other UI, observed for analytics, or driven programmatically). Defaults to an internal signal exposed via revealed_signal.

pub fn allow_copy(mut self, allow: bool) -> Self

Permit copy / cut even while masked (default false). Copy is always allowed while revealed regardless of this flag.

pub fn caps_lock_warning(mut self, on: bool) -> Self

Show a Caps Lock warning when focused with Caps Lock on (default true). The warning is announced to screen readers via a polite live region.

pub fn at_reveal_policy(mut self, policy: AtRevealPolicy) -> Self

How a revealed field reports to assistive tech (default AtRevealPolicy::SwapRole).

pub fn tooltip(mut self, text: impl Into<LocalizedString>) -> Self

Plain single-line tooltip shown on hover.

Mutually exclusive with rich_tooltip_key, rich_tooltip, rich_tooltip_content, and composite_tooltip — calling any of them clears the others.

pub fn rich_tooltip_key(mut self, key: impl Into<String>) -> Self

Registry-keyed rich tooltip.

Mutually exclusive with the other tooltip setters.

pub fn rich_tooltip_content(mut self, content: tooltip::TooltipContent) -> Self

Inline rich tooltip (canonical name: accepts a TooltipContent directly without a registry key).

Mutually exclusive with the other tooltip setters.

pub fn rich_tooltip(mut self, content: tooltip::TooltipContent) -> Self

Inline rich tooltip.

Mutually exclusive with the other tooltip setters. Prefer rich_tooltip_content for the canonical API.

pub fn composite_tooltip(mut self, content: impl Widget + 'static) -> Self

Composite (arbitrary-widget) tooltip.

Mutually exclusive with the other tooltip setters.

pub fn revealed_signal(&self) -> Signal<bool>

The reveal-state signal (true = plaintext shown). Useful to observe or drive reveal programmatically.

pub fn text(&self) -> Signal<String>

The bound password signal.
