SegmentedControl

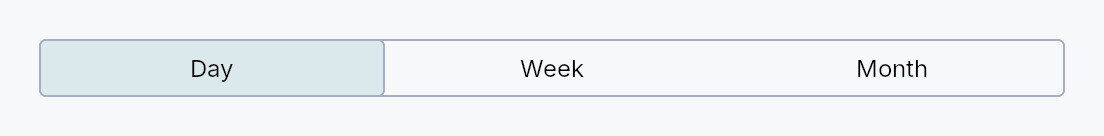

SegmentedControl preview

SegmentedControl — mutually exclusive segments in a horizontal row.

Each segment is a real composed widget — a centered icon + label with a reactive tint — built from a Segment descriptor. Selection is bound to a Signal<Option<SegmentId>>: keyed, not positional, so inserting or removing a segment never silently re-points the selection at a different one. The chrome (rounded frame, hover tint, selected-segment surface) is delegated to the active SegmentedControlStyle.

const LIST: SegmentId = SegmentId::from_u64(1);
const GRID: SegmentId = SegmentId::from_u64(2);

let view = ctx.signal(Some(LIST));
SegmentedControl::new(view.clone())
    .segment(Segment::new(tr!(list_view())).id(LIST).icon(|| IconWidget::list(14.0)))
    .segment(Segment::new(tr!(grid_view())).id(GRID).icon(|| IconWidget::grid(14.0)))

// Pairing with a Switcher:
Switcher::new(segmented_control::index_signal(&view, &[LIST, GRID]))

When to use

Use a SegmentedControl for mutually exclusive modes that read well as a compact horizontal strip (view mode, time period).
Prefer a ComboBox when the options are many and the strip form buys nothing — though a segmented control no longer breaks down at seven segments, because it overflows (below).
Prefer RadioButton / RadioTileGroup when the options need vertical space or descriptions.

Width: overflow, not squeeze

When the segments do not fit, the ones that do not fit move into a trailing chevron menu rather than all of them compressing into ellipsised stubs (SegmentOverflow::Menu, the default; opt out with SegmentOverflow::Compress).

Declaration order is stable, with exactly one exception: the selected segment is always visible. If it would have been pushed into the menu it takes the last slot, and it stays there until another segment is chosen from the menu — so the strip does not reshuffle under the pointer, and the promotion is forgotten once the control is wide enough to show everything again.

Declared: [A][B][C][D][E][F][G]   fits 4 + chevron

start, A selected     [A][B][C][D][v]   menu: E F G
pick F from menu      [A][B][C][F][v]   menu: D E G
click A (F stays)     [A][B][C][F][v]   menu: D E G
widen to full fit     [A][B][C][D][E][F][G]

Accessibility

Role::RadioGroup on the control with active_descendant pointing at the selected segment; Role::RadioButton per segment, carrying "N of M" over the whole segment list — including segments currently in the overflow menu, which are still reachable. Arrow keys cycle selection (RTL-aware, resolved at event time) and Home/End jump to the ends, both skipping disabled segments; stepping onto an overflowed segment promotes it into view. Increment/Decrement AT actions mirror the arrows.

The strip is one tab stop. While the control is overflowing the chevron adds a second, because an overflow menu that no keyboard can reach is not an overflow menu; it cannot join the arrow sequence, since here arrows move selection rather than a roving focus.

Builder methods at a glance

indexed, segment, segments, segment_ids, enabled, label, on_change, style, text_style, display, sizing, overflow, is_overflowing, fill_width

API reference

📖 Full rustdoc API for this module

`pub enum SegmentDisplay`

What a segment paints: its icon, its label, or both.

Set on the control with SegmentedControl::display; it applies to every segment. Mirrors TabWidget's TabDisplayMode.

Icon-only is the classic compact fallback before overflow kicks in: a bar of icon-only segments fits far more of them, so switching to Icon can be the difference between a complete strip and a chevron menu.

#![allow(unused)]
fn main() {
pub enum SegmentDisplay { /* variants */ }
}

Variants

Auto — Paint whatever the segment declares — icon and label when both are present, label alone otherwise. The default, and the behaviour of every SegmentedControl before this mode existed.
Text — Label only. A declared icon is suppressed.
Icon — Icon only; the label is promoted to the hover tooltip (unless the segment already declares one). A segment with no icon falls back to its label, so the mode is never a silent no-op.
IconText — Icon and label. Identical to Auto for a segment that declares both; kept for parity with TabDisplayMode so a caller can be explicit.

`pub enum SegmentSizing`

How the visible segments divide the control's width.

#![allow(unused)]
fn main() {
pub enum SegmentSizing { /* variants */ }
}

Variants

Uniform — Every visible segment gets the same width — the Apple / IntUI look, and the behaviour of every SegmentedControl before this knob existed. The fit calculation uses the widest segment's natural width as the unit, so segments never look ragged.
Fit — Every visible segment gets its own natural width, and leftover space (when the control fills a wider slot) is shared equally. Fits more short segments before overflowing, at the cost of an uneven strip.

`pub enum SegmentOverflow`

What the control does when its segments do not fit.

#![allow(unused)]
fn main() {
pub enum SegmentOverflow { /* variants */ }
}

Variants

Menu — Move the segments that do not fit into a trailing chevron menu, keeping the rest at a legible width. The selected segment is always among the visible ones. This is the default.
Compress — Keep every segment on the strip and let them compress, truncating labels with an ellipsis. The behaviour of every SegmentedControl before overflow existed — appropriate for two or three short segments that will never realistically overflow.

`pub struct Segment`

One segment descriptor: a localized label with a stable SegmentId, an optional leading icon, a hover tooltip, and reactive disabled / visible flags.

#![allow(unused)]
fn main() {
pub struct Segment { /* fields */ }
}

Methods

`pub fn new(label: impl Into<LocalizedString>) -> Self`

A text segment with a freshly allocated SegmentId. The label may come from tr!(...) (translated — follows a live locale switch) or lit!(...) (untranslated).

Call id when the segment needs a stable identity — one that survives a restart, or that another crate can name.

`pub fn id(mut self, id: SegmentId) -> Self`

Give this segment an app-chosen stable identity, replacing the fresh id new allocated. Use this whenever the selection is persisted or the segment is contributed by another crate.

`pub fn segment_id(&self) -> SegmentId`

This segment's identity.

`pub fn icon(mut self, factory: impl Fn() -> IconWidget + 'static) -> Self`

Add a leading icon. The factory is invoked at build time (and on rebuild); the icon's tint is bound reactively to the segment's selected / focus / enabled state so it matches the label.

`pub fn tooltip(mut self, text: impl Into<LocalizedString>) -> Self`

Hover tooltip — most useful for icon-only segments.

Mutually exclusive with rich_tooltip / rich_tooltip_content / composite_tooltip — last call wins.

`pub fn rich_tooltip(mut self, key: impl Into<String>) -> Self`

Rich hover tooltip resolved from the app-wide registry by key.

Mutually exclusive with tooltip / rich_tooltip_content / composite_tooltip — last call wins.

Rich hover tooltip driven by an inline TooltipContent entry (no registry key needed).

Mutually exclusive with tooltip / rich_tooltip / composite_tooltip — last call wins.

Composite hover tooltip built by a factory closure at attach time.

The factory is called once per build() to produce the tooltip body widget. It is stored as an Rc<dyn Fn> so that Segment remains Clone.

Mutually exclusive with tooltip / rich_tooltip / rich_tooltip_content — last call wins.

`pub fn disabled(mut self, disabled: impl Into<Prop<bool>>) -> Self`

Disable this segment: not selectable via click or keyboard, dimmed, and announced disabled to assistive tech.

Accepts a bool or a Signal<bool> — a bound signal flips the segment live, with no rebuild, and keyboard stepping honours the new value immediately (the flags are read at event time, not snapshotted at build time).

`pub fn visible(mut self, visible: impl Into<Prop<bool>>) -> Self`

Hide this segment entirely: it leaves the strip, the overflow menu, the keyboard order, and the accessibility tree, and it is excluded from the overflow calculation.

Distinct from overflowed — an overflowed segment is still reachable from the chevron menu, a hidden one is not there at all. Accepts a bool or a Signal<bool>; a bound signal re-runs the overflow plan with no rebuild.

`pub fn index_signal(...)`

Derive a Switcher-compatible index from a keyed selection.

SegmentedControl is keyed precisely so that a contributed segment cannot silently re-point the selection, but Switcher is index-driven — this is the adapter between the two. Unknown or absent ids resolve to 0, matching Switcher's own out-of-range behaviour.

Switcher::new(segmented_control::index_signal(&view, &[LIST, GRID, COLUMNS]))
    .child(list_pane)
    .child(grid_pane)
    .child(columns_pane)

#![allow(unused)]
fn main() {
pub fn index_signal(selected: &Signal<Option<SegmentId>>, ids: &[SegmentId]) -> Signal<usize>;
}

`pub struct SegmentedControl`

A segmented control binding a Signal<Option<SegmentId>> to a row of mutually exclusive segments. Build the segment list with segment or segments.

#![allow(unused)]
fn main() {
pub struct SegmentedControl { /* fields */ }
}

Methods

`pub fn new(selected: Signal<Option<SegmentId>>) -> Self`

Create an empty segmented control bound to selected. Add segments with segment or segments.

`pub fn indexed(index: Signal<usize>) -> Self`

Bind a positional Signal<usize> instead of a keyed selection, mirrored in both directions.

Use this only when position is the meaning and the segment list is closed and local — an enum discriminant over a fixed ALL array, a Switcher index, a settings choice. For anything else prefer new: an index silently stops meaning the same thing the moment a segment is inserted ahead of it, which is the entire reason selection is keyed. A persisted selection, or segments contributed by another crate, are both firmly in "anything else".

Positions address the declared list, so a segment hidden with Segment::visible does not renumber the others.

// `bucket_idx` already drives the rollup maths and a Switcher.
SegmentedControl::indexed(bucket_idx.clone())
    .segments([lit!("×2"), lit!("×4"), lit!("×8")])

`pub fn segment(mut self, segment: impl Into<Segment>) -> Self`

Append one segment. Accepts a Segment or, via From<LocalizedString>, a bare tr!(...) / lit!(...) label (which gets a freshly allocated SegmentId).

`pub fn segments(mut self, segments: impl IntoIterator<Item = impl Into<Segment>>) -> Self`

Append several segments. Label-only: .segments([tr!(day()), tr!(week())]); rich: .segments([Segment::new(...).id(DAY).icon(...), ...]).

`pub fn segment_ids(&self) -> Vec<SegmentId>`

The ids of the segments added so far, in declaration order. Convenient for feeding index_signal without repeating the list.

`pub fn enabled(mut self, enabled: impl Into<Prop<bool>>) -> Self`

Set the enabled state, statically or reactively. Forwarded to the arena at build time via ctx.enabled_when(segmented_control_id, self.enabled.clone()).

`pub fn label(mut self, label: impl Into<LocalizedString>) -> Self`

Accessible name for the group — e.g. "View mode". Screen readers announce it before the selected segment. Matches RadioGroup::label and RadioTileGroup::label.

`pub fn on_change(mut self, f: impl Fn(SegmentId, &mut EventContext) + 'static) -> Self`

Called whenever the user changes the selection — by click, arrow key, assistive technology, or the overflow menu. Receives the newly selected SegmentId and an EventContext, so it can do things a bare Signal write cannot (ctx.set_locale(...), ctx.send_intent(...), opening a window).

Does not fire for programmatic writes to the bound signal — there is no event in flight to carry. Observe the signal for that.

`pub fn style(mut self, style: impl teksilo_core::styles::SegmentedControlStyle) -> Self`

Per-call override for the segmented-control chrome.

`pub fn text_style(mut self, style: impl Into<teksilo_core::color_prop::TextStyleProp>) -> Self`

Override every segment's label text style (font, size, weight). Accepts a TextStyleRole, a TextStyle, or a Signal of either. Default (unset) is TextStyleRole::Small. Text color stays state-driven and is intentionally not overridable here.

`pub fn display(mut self, display: SegmentDisplay) -> Self`

What each segment paints: its icon, its label, or both. See SegmentDisplay. Icon-only fits far more segments, so it is worth reaching for before the control starts overflowing.

`pub fn sizing(mut self, sizing: SegmentSizing) -> Self`

How the visible segments divide the width. See SegmentSizing.

`pub fn overflow(mut self, mode: SegmentOverflow) -> Self`

What to do when the segments do not fit. See SegmentOverflow.

`pub fn is_overflowing(&self) -> Signal<bool>`

Reactive "some segments are in the overflow menu right now".

Republished from place_children behind an equality guard, so it is safe for RepaintOnly / AccessibilityOnly consumers and for Relayout consumers that do not feed back into this control's own width. Mirrors Toolbar::is_overflowing.

`pub fn fill_width(mut self, fill: bool) -> Self`

Whether the control claims all the width offered to it (the default, and the behaviour before this knob existed) or hugs its segments.

false also makes the control shrinkable: in an over-constrained stack it compresses — and overflows — instead of spilling past its bounds.

`pub struct SegmentId`

Stable identity of a segment. Cheap to copy; survives rebuilds, locale changes, and segments being inserted around it.

#![allow(unused)]
fn main() {
pub struct SegmentId(NonZeroU64);
}

Methods

`pub fn fresh() -> Self`

Allocate a new, never-before-seen id. Backed by a monotonic global counter — overflow is theoretically possible after 2^64 calls, at which point the universe has had bigger problems.

Segment::new calls this for you, so a control that never persists its selection needs no explicit ids.

Allocations start at 2^48, so they can never collide with a small constant an app declared through from_u64.

`pub const fn from_raw(value: NonZeroU64) -> Self`

Wrap an externally-allocated key. Use this when the segment's identity comes from an app-side store (a view-mode enum discriminant, a plugin key hash, …) — calling SegmentId::fresh would allocate a new id every restart, breaking a persisted selection.

`pub const fn from_u64(value: u64) -> Self`

const convenience over from_raw, so an app can declare its segments as constants:

# use teksilo_widgets::SegmentId;
const SYNOPSIS: SegmentId = SegmentId::from_u64(1);
const CHAPTER: SegmentId = SegmentId::from_u64(2);

Panics

If value is zero. Because this is a const fn, a literal zero is caught at compile time rather than at run time.

`pub const fn raw(self) -> NonZeroU64`

The underlying non-zero u64. Serialize this to persist a selection across sessions; restore via from_raw or from_u64.

`pub const fn get(self) -> u64`

The underlying value as a plain u64.
