TableView

TableView<T> — generic, virtualized, accessible tabular widget.

Public types

Public functions

TableView

TableViewHandle

EditTriggers

ColumnSpec

Column

TableSelectionMode

CellSelectionModel

Detailed description

Built atop the ListModel<T> / ListDataSource data layer in teksilo-data and the teksilo-core TableStyle. Mirrors Qt's QTableView, SwiftUI's Table, and JavaFX's TableView. The core skeleton: single body pane, row-virtualized with alternating backgrounds, grid lines, Role::Table > Role::Row > Role::Cell accessibility, multi-row selection, and an empty-state slot. Headers, sort, filter, resize, reorder, pinning, cell selection, and editing are also included. Row heights come in three modes: uniform (row_height, the default fast path), exact per-row callback (row_height_fn), and auto-measured (auto_row_height — rows grow to their tallest cell, height-for-width). See docs/table-view.md "Row heights".

The header strip is a TableHeader over the columns' ColumnSpecs, which this view and TreeTableView both compose and which works on its own over rows an application lays out itself.

Column state an application owns

The sort, the column widths, the column order and the filters live in four signals the table publishes (sort_signal(), column_widths_signal(), column_order_signal(), filters_signal()). By default the table creates them. bind_sort, bind_column_widths, bind_column_order and bind_filters make the table adopt signals the application already holds instead, so several views, or a view-model, share one state without mirroring it.

• Adopting writes nothing. The table never seeds an adopted signal: not when it is built, mounted, laid out or rebuilt. What the signal holds is what the table shows; an empty map, an empty list or None means the declared defaults. The table writes only for a user gesture (a header click, a resize drag, a reorder drop, the filter popover, an AccessKit increment) or an imperative setter (set_sort, set_column_widths, …).
• Ids the table does not declare are ignored when read and kept when written. A width, a filter or an order entry for a column this table lacks changes nothing here, and a reorder in this table moves the dragged column and leaves every other entry where it was. A column with no width entry takes its declared ColumnWidth.
• A resize writes one width into an adopted map. The Flex columns before the grip keep their widths, so the divider follows the pointer, but in this table only: the widths they had here are not the widths they have in a view of another size sharing the map. A table on its own map writes them into it, so the map it persists matches what it shows.
• No feedback loop. A view reacts to a change by relaying out or rebuilding, never by writing back, so two views bound to the same signals follow each other's edits and settle after one pass.
• Bind before any imperative setter. A setter called earlier in the builder chain wrote the table's own signal, which the bind replaces.

use teksilo_data::ListModel;
use teksilo_widgets::table_view::{Column, ColumnWidth, TableView};
use teksilo_i18n::lit;

struct Person { name: String, age: u32 }

let model: ListModel<Person> = ListModel::new();
let _table = TableView::new(model)
    .add_column(Column::new("name", ColumnWidth::Flex(1.0))
        .label(lit!("Name"))
        .cell(|p: &Person, _cx| Box::new(
            teksilo_widgets::primitives::TextWidget::new(
                teksilo_i18n::lit!(p.name.clone())
            )
        )))
    .add_column(Column::new("age", ColumnWidth::Fixed(60.0))
        .label(lit!("Age"))
        .cell(|p: &Person, _cx| Box::new(
            teksilo_widgets::primitives::TextWidget::new(
                teksilo_i18n::lit!(p.age.to_string())
            )
        )))
    .alternating_rows(true)
    .row_height(32.0);

Scrolling to a row

handle returns a TableViewHandle, a cheap Clone taken before the table is added and usable from any handler afterwards. Its scroll_to_row and ensure_row_visible are applied at the next layout pass, after row measurement and scroll anchoring, so they may follow a model change in the same turn, or be called before mount:

#![allow(unused)]
fn main() {
use teksilo_data::ListModel;
use teksilo_widgets::TableView;
let model: ListModel<String> = ListModel::new();
let table = TableView::new(model.clone());
let handle = table.handle();
// … add the columns, `ctx.add(table)`; then, from a handler:
model.insert(0, "Fresh".into());
handle.ensure_row_visible(0);
}

The builder-value methods of the same names compute the offset when they are called, against the last layout pass. See docs/table-view.md, "Scrolling to a row".

Pan to scroll

The view installs common::scrollable::ScrollableBehavior, which gives it the shared wheel arithmetic, a finger's pan and the PanClaim that puts it on a pan's claimant chain. A pan scrolls it, the release coasts, and a pan it cannot absorb hands the whole event to the container outside — never a residual. A pan that starts on a row scrolls rather than activating it or collapsing a multi-selection onto it. Both axes are claimed. Shift+wheel still scrolls the columns, and a finger's pan is never remapped by a held Shift: the remap is a wheel convention, and turning a drag sideways is not what the hand asked for.

Density

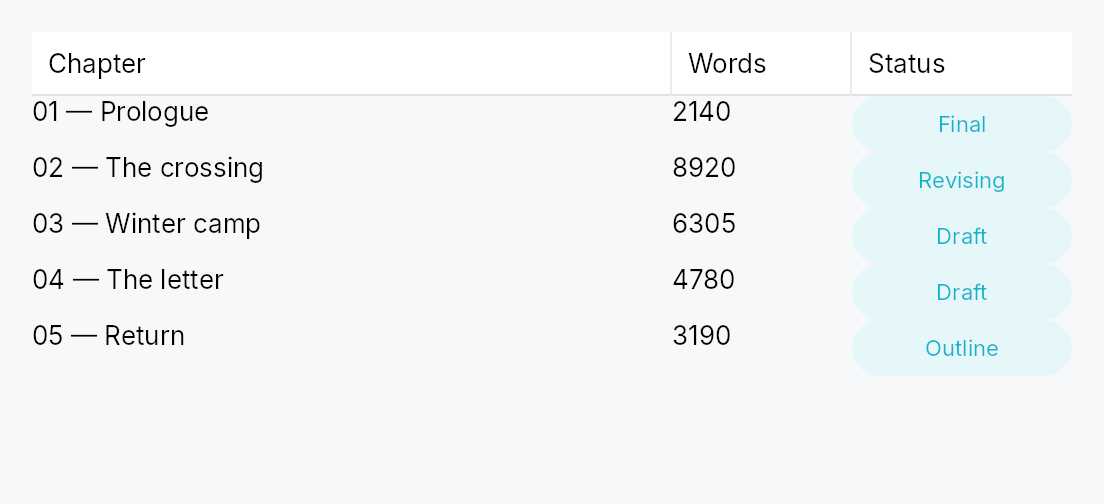

The picture above is the widget at TargetDensity::Compact, the mouse-and-keyboard ladder. Below is the same subject on the same canvas with only the ladder changed, so what moves is the density and nothing else — where the subject no longer fits, that is what the denser targets cost it at that size. See docs/density-and-targets.md.

Touch

API reference

📖 Full rustdoc API for this module

pub struct TableView

Import: use teksilo::widgets::TableView;

Generic, virtualized, accessible table with sortable / filterable / resizable columns.

Construct with TableView::new (from a ListModel<T>) or TableView::from_source (any ListDataSource), then chain builder methods to configure columns, row heights, selection, and so on. See module docs for the full feature list and row-height modes.

#![allow(unused)]
fn main() {
pub struct TableView<T: 'static> { /* fields */ }
}

Methods

pub fn new(model: ListModel<T>) -> Self

Wrap a ListModel<T>.

pub fn from_source<S: ListDataSource<Item = T>>(source: S) -> Self

Wrap any ListDataSource<Item = T> (e.g. a SortFilterListModel<T>).

The source owns DnD validation (can_accept / accept_drop) and lazy windowing (row_state / request_window / fetch_more); a read-only source leaves the defaults inert.

pub fn from_source_keyed<S: ListDataSource<Item = T>>( source: S, keyed: KeyedSelectionModel<S::Key>, ) -> Self where S::Key: ItemKey,

Wrap any ListDataSource<Item = T> with keyed row selection. The KeyedSelectionModel<S::Key> tracks selection by source identity, so it survives reorders / filters / lazy window-slides and stays consistent across two views of the same source. The view stays TableView<T> — the index↔key mapping is captured from the concrete source here. Equivalent to from_source(..) plus an identity-based replacement for selection.

pub fn enabled(mut self, enabled: impl Into<Prop<bool>>) -> Self

Enable or disable the whole view. A disabled view greys out and stops accepting focus / selection / keyboard input (arena-gated).

pub fn overscroll_behavior(mut self, behavior: OverscrollBehavior) -> Self

Set the scroll-chaining behavior at the boundary (default OverscrollBehavior::Chain; Contain disables chaining to an ancestor scrollable).

pub fn smooth_scrolling(mut self, enabled: bool) -> Self

Enable or disable animated wheel scrolling (enabled by default). When disabled, wheel events snap immediately to the new offset.

pub fn type_ahead_label(mut self, label: impl Fn(&T) -> String + 'static) -> Self

Enable type-ahead ("type to jump"): typing a printable character while the table has keyboard focus jumps the focused row to the next row whose label starts with the accumulated search term, wrapping around (Qt keyboardSearch / macOS & Windows type-select). label(&item) yields the searchable text for a row; matching is ASCII-case-insensitive. A pause longer than the type_ahead_timeout starts a fresh term.

On an editable column whose EditTriggers is type-to-edit, typing starts an edit instead — type-ahead applies on non-editable columns (or when no type-to-edit trigger is configured).

pub fn type_ahead_timeout(mut self, timeout: Duration) -> Self

Reset window between keystrokes before the type-ahead search term clears (default 500 ms). A zero duration disables type-ahead.

pub fn smooth_scroll_duration(mut self, duration: Duration) -> Self

Duration of the smooth scroll animation (default 150 ms).

pub fn scroll_bar_style(mut self, style: ScrollBarMode) -> Self

How the scroll bar is displayed (default Permanent). Overlay and Thin float the bar over the content instead of reserving a layout column for it, mirroring ScrollArea::scroll_bar_style.

pub fn add_column(mut self, col: Column<T>) -> Self

Append a single Column<T> definition to the table.

pub fn columns(mut self, cols: impl IntoIterator<Item = Column<T>>) -> Self

Append multiple Column<T> definitions from an iterator.

pub fn row_height(mut self, height: f32) -> Self

Fixed row height, the uniform fast path. Default: the active TableStyle's row_height, 28 px under IntUI at the Compact density. Mutually exclusive with row_height_fn and auto_row_height; the last mode setter wins.

pub fn row_height_fn(mut self, f: impl Fn(usize) -> f32 + 'static) -> Self

Per-row heights from a callback over the visible row index. The callback must be pure (same index + same data → same height); it is re-swept from the first changed index on every model change (a SortFilterListModel source reports that index through first_changed_index, so sort/filter/append keep the valid prefix). No measurement pass runs.

pub fn auto_row_height(mut self, estimated: f32) -> Self

Auto-measured row heights: each realized row reports the height of its tallest cell measured at the cell's column width (height-for-width), unrealized rows assume estimated. Scroll anchoring keeps content above the viewport stationary as estimates are corrected; the scrollbar settles one frame after a measurement change.

pub fn header_height(mut self, height: f32) -> Self

Override the column header row height in logical pixels. Default: the active TableStyle's header_height, 32 px under IntUI at the Compact density.

pub fn show_header(mut self, visible: bool) -> Self

Show or hide the column header row. Default: visible.

pub fn column_resize_policy(mut self, policy: ColumnResizePolicy) -> Self

Set how column widths are redistributed when columns are added, resized, or the table's own width changes. See ColumnResizePolicy.

pub fn tab_traversal(mut self, mode: TabTraversal) -> Self

Control how Tab / Shift+Tab navigate between cells. See TabTraversal.

pub fn edit_triggers(mut self, trigger: EditTriggers) -> Self

Set which user action opens a cell editor. See EditTriggers.

pub fn on_cell_edit_request( mut self, f: impl Fn(usize, &str, &mut teksilo_core::widget::EventContext) + 'static, ) -> Self

Hook fired by the keyboard handler when an edit trigger fires on the focused cell. Receives (row_index, col_id, ctx).

pub fn on_cell_edit_dismissed( mut self, f: impl Fn(usize, &str, &mut teksilo_core::widget::EventContext) + 'static, ) -> Self

Callback invoked when an open cell editor should end because the pointer went somewhere else: a press that lands on any cell other than the one being edited. Receives the editing cell's flat row index and column id, so the owner can commit (or discard) whatever is in its buffer, then clear its own editing state.

The counterpart of on_cell_edit_request, and the view cannot do it alone: the framework owns which cell is being edited, but only the owner knows what an ended edit means — commit, discard, or refuse a value that will not parse.

Why a press and not a focus change. "The editor lost focus" is the obvious signal and it cannot be used: a body pane rebuilds constantly — selection, filtering, scroll, a reload from elsewhere — and every rebuild destroys and re-creates the open editor, so focus leaves it many times during an edit the writer never interrupted. A press on another cell is unambiguous and happens exactly once.

pub fn on_row_activate( mut self, f: impl Fn(usize, &mut teksilo_core::widget::EventContext) + 'static, ) -> Self

Callback invoked when a row is activated: a click or a double click per activate_on, or Enter on the focused row. Receives the flat row index.

The pointer half is a gesture, so it arbitrates against a pan and against the reorder drag through the gesture arena: a click activates, a drag does not.

pub fn reorderable(mut self, enabled: bool) -> Self

Enable drag-to-reorder of rows (pointer drag + keyboard Alt+ArrowUp/Down). Distinct from Column::reorderable, which reorders columns and defaults to true; this defaults to false.

The move is routed through the backing source's accept_drop: a ListModel reorders in place, an external source routes the move to its store. Per-hover the source's can_accept decides whether the drop is allowed — a forbidden position shows no insertion line and the drop is refused. A row may also be forbidden from dragging at all (the source's drag gate). Cross-table / external drops arrive at accept_drop as DragSource::Foreign; a bare ListModel rejects them, an external source decides.

pub fn reorderable_rows(self, enabled: bool) -> Self

Renamed to reorderable, matching ListView, GridView, TreeView and TreeTableView — this was the only view in the family spelling it differently.

pub fn exportable(mut self, mode: DragTransferMode) -> Self where T: Clone,

Make rows droppable outside this view — on a DropTarget, another data view, or the OS.

A dragged row (or the whole selection, when the pressed row is part of a multi-selection) carries clones of its items in a public RowDragData<T>, so a foreign receiver can pull them out with payload.get_typed::<RowDragData<T>>() / DropTarget::on_drop_typed::<RowDragData<T>>() — no serialization. This also makes rows a drag source even without reorderable.

mode chooses what happens to the origin rows once a foreign target accepts them: DragTransferMode::Move removes them (via the source's on_drag_out, or on_rows_transferred_out), DragTransferMode::Copy leaves them. A same-view reorder is never a transfer, so mode never affects it. Requires T: Clone.

pub fn export_external(mut self, f: impl Fn(&[T]) -> Vec<(String, Vec<u8>)> + 'static) -> Self where T: Clone,

Additionally advertise the dragged rows as MIME data so they can be dropped on a DropZone or exported to another application / window via the OS. f maps the dragged items to (mime_type, bytes) pairs (e.g. text/plain, text/uri-list, an app-specific application/x-…). Implies exportable (defaulting to DragTransferMode::Move if not already set). Requires T: Clone.

pub fn on_rows_transferred_out( mut self, f: impl Fn(&[usize], &mut teksilo_core::widget::EventContext) + 'static, ) -> Self

Override how rows moved out to a foreign target are removed from this view. Receives the dragged rows' indices (descending-safe) and the live context. Without this, an exportable Move drag removes them through the source's on_drag_out (works out of the box for a ListModel).

pub fn accept_foreign_rows(mut self, accept: bool) -> Self

Accept exported rows dropped from a different view or source without writing a custom ListDataSource. Pair with on_rows_received, which is handed the dropped items and the insertion index. (Same-view reorder is reorderable; a custom ListDataSource can still accept foreign drops through its can_accept/accept_drop instead.)

pub fn on_rows_received( mut self, f: impl Fn(Vec<T>, usize, &mut teksilo_core::widget::EventContext) + 'static, ) -> Self

Handler for rows accepted via accept_foreign_rows: (items, insertion_index, ctx). Insert them into your model at the index.

pub fn activate_on(mut self, mode: crate::data_views::ActivateOn) -> Self

Choose single- vs double-click activation for on_row_activate (default ActivateOn::DoubleClick). Enter/Space activates in either mode.

pub fn selection_mode(mut self, mode: TableSelectionMode) -> Self

Choose the row-selection granularity (None / Single / Multi). See TableSelectionMode.

pub fn selection(mut self, sel: SelectionModel) -> Self

Set the index-based row selection model (positions). For identity-based selection that survives reorder / filter / window-slide, build the view with from_source_keyed instead.

pub fn cell_selection(mut self, sel: CellSelectionModel) -> Self

Install an independent cell-selection model on top of row selection. See CellSelectionModel.

pub fn alternating_rows(mut self, enabled: bool) -> Self

Paint every other row with a tinted background. Default: off.

pub fn grid_lines(mut self, kind: GridLines) -> Self

Draw horizontal and/or vertical grid lines between cells. See GridLines.

pub fn stretch_last_column(mut self, on: bool) -> Self

Let the last column in display order take up whatever width the other columns leave, so the table never ends in a bare strip at its trailing edge — Qt's stretchLastSection, NSTableView's lastColumnOnlyAutoresizingStyle. Default: off.

Positional, not a property of a column: after a reorder it is the new last column that stretches and the previous one goes back to its own width. While a column stretches, its declared width is the floor it grows from, its user-resize override is ignored, and its trailing grip is disabled (no AccessKit Increment/Decrement either): any size the user gave it, the stretch would take straight back. Resizing any other column reflows it. Once the other columns exceed the viewport there is nothing left to stretch into — the last column sits at its own width and the pane scrolls, as in Qt.

Flex columns already share every spare pixel among themselves, so a table of Flex columns looks the same either way: this is for pixel-sized tables (Fixed / Auto, or widths the user has set) that would otherwise end in a gap.

pub fn a11y_label(mut self, label: impl Into<LocalizedString>) -> Self

Provide an accessible label for the table (aria-label). Required when the page hosts more than one table so screen readers can distinguish them.

pub fn show_internal_scrollbars(mut self, show: bool) -> Self

Show or hide the built-in vertical and horizontal scroll bars. Default: visible. Set to false when an external scroll bar is wired to scroll_y_signal.

pub fn empty_view(mut self, f: impl Fn() -> Box<dyn Widget> + 'static) -> Self

Widget shown when the source is empty.

pub fn bind_sort(mut self, sort: Signal<Option<(String, SortDirection)>>) -> Self

Use sort as this table's sort state instead of a signal of its own: header clicks and set_sort write it, and a write from anywhere else updates the header. sort_signal returns it. Bind the same signal to a SortFilterListModel to re-sort the rows.

The table writes nothing into it until the user sorts; see the module docs, "Column state an application owns", for the full contract.

pub fn bind_column_widths(mut self, widths: Signal<HashMap<String, f32>>) -> Self

Use widths as this table's map of column id → width instead of a signal of its own: a resize drag and set_column_width write it, and a write from anywhere else resizes the columns. A column with no entry takes its declared ColumnWidth; an entry for a column the table lacks is ignored. A resize writes the resized column's entry alone; the Flex columns before it keep their widths in this table, not in the map. column_widths_signal returns it.

See the module docs, "Column state an application owns".

pub fn bind_column_order(mut self, order: Signal<Vec<String>>) -> Self

Use order as this table's column order instead of a signal of its own: a reorder drop and set_column_order write it, and a write from anywhere else reorders the columns. Ids the table lacks are skipped when it lays out and kept in place when it writes. column_order_signal returns it.

See the module docs, "Column state an application owns".

pub fn bind_filters(mut self, filters: Signal<HashMap<String, String>>) -> Self

Use filters as this table's per-column filter text instead of a signal of its own: the filter popover and set_filter write it. filters_signal returns it. Bind the same signal to a SortFilterListModel to filter the rows.

See the module docs, "Column state an application owns".

pub fn scroll_y_signal(&self) -> &Signal<f32>

Current vertical scroll offset in logical pixels.

pub fn max_scroll_y_signal(&self) -> &Signal<f32>

Maximum vertical scroll offset — total_content_height − viewport_height.

pub fn viewport_ratio_y_signal(&self) -> &Signal<f32>

Viewport-to-content height ratio, used by external scroll bar thumbs.

pub fn scroll_x_signal(&self) -> &Signal<f32>

Current horizontal scroll offset of the Middle (unpinned) pane, in logical pixels. Leading/Trailing-pinned columns are unaffected — see Column::pinned.

pub fn max_scroll_x_signal(&self) -> &Signal<f32>

Maximum horizontal scroll offset — middle_content_width − middle_viewport_width.

pub fn viewport_ratio_x_signal(&self) -> &Signal<f32>

Middle-pane viewport-to-content width ratio, used by external horizontal scroll bar thumbs.

pub fn sort_signal(&self) -> &Signal<Option<(String, SortDirection)>>

Active sort: Some((col_id, dir)) or None when unsorted. Mutated by header clicks (cycle: None → Asc → Desc → None) and by set_sort / clear_sort. The signal adopted by bind_sort, if any. Bind a SortFilterListModel to drive a re-sort of the underlying data:

let proxy = SortFilterListModel::new(model)
    .with_comparator("name", |a, b| a.name.cmp(&b.name));
proxy.sort_signal(table.sort_signal().clone());

pub fn column_widths_signal(&self) -> &Signal<HashMap<String, f32>>

Map of column id → user-overridden width. The table writes entries only for a resize: the resized column's, and — when the map is its own — one for each Flex column before it, frozen at the width it had. Missing keys mean "use the declared width policy". The signal adopted by bind_column_widths, if any.

pub fn column_order_signal(&self) -> &Signal<Vec<String>>

Column ids in display order. Updated when the user drags a header to reorder, or imperatively via set_column_order. When empty, the declared order applies. Pinned-side groups (Leading / None / Trailing) are always honored — the entries inside this signal only re-sort within each group. The signal adopted by bind_column_order, if any.

pub fn column_pinning_signal(&self) -> &Signal<HashMap<String, PinnedSide>>

Per-id pinning override map. A key here puts the column on that side, PinnedSide::None unpinning a column declared pinned; missing keys fall back to the declared Column::pinned. Updated when the user drags a column across a pane boundary.

pub fn focused_cell_signal(&self) -> &Signal<Option<(usize, usize)>>

Currently keyboard-focused cell, as (row_index, display_col), or None when no cell is focused. Mutated by the keyboard handler (Arrow keys / Tab / Home / End / PgUp / PgDn / Ctrl-Home / Ctrl-End / Escape), by direct set_focused_cell / clear_focused_cell calls, and — in a table whose selection holds one row or cell — by any selection change that leaves an existing cursor off the selection, which moves the cursor onto it.

pub fn set_focused_cell(&self, row: usize, col: usize)

Move the focused cell. Out-of-range values are silently clamped when the next layout runs.

pub fn clear_focused_cell(&self)

Remove keyboard focus from any cell (equivalent to pressing Escape).

pub fn editing_cell_signal(&self) -> &Signal<Option<(usize, usize)>>

Cell currently in edit mode, or None when no editor is open. Cell delegates inspect this via CellContext::is_editing and swap in an editor widget when matched.

pub fn begin_edit(&self, row: usize, col_id: &str)

Begin editing the cell (row, col_id). Silently no-ops if col_id isn't a currently-displayed column, or if row is outside the visible range — an out-of-range target would otherwise strand editing_cell on a row nothing can match.

Callable before the view is mounted, which is the only point at which a consumer can seed a freshly constructed view with an edit target it already holds. display_indices is a cache build() fills, so a pre-mount call finds it empty; the order is recomputed on demand in that case rather than resolving against nothing and no-opping for a third, undocumented reason.

pub fn end_edit(&self)

Close the active cell editor without committing (the field's on_blur still fires).

pub fn filters_signal(&self) -> &Signal<HashMap<String, String>>

Per-column filter text. Updated by filter affordances in header cells and by set_filter / clear_filters. The signal adopted by bind_filters, if any. Bind a SortFilterListModel<T> to drive the upstream data:

let proxy = SortFilterListModel::new(model)
    .with_predicate("name", |t| {
        let needle = t.to_string();
        Box::new(move |r: &Row| r.name.contains(&needle))
    });
proxy.filters_signal(table.filters_signal().clone());

pub fn set_filter(&self, col_id: &str, text: &str)

Set or clear the filter text for a single column. An empty text removes the entry for col_id (same as clearing the filter for that column).

pub fn clear_filters(&self)

Remove all active column filters.

pub fn scroll_to_row(&self, row: usize)

Scroll so that row is aligned to the top of the viewport, now, against the row offsets and scroll range of the last layout pass.

The offset is clamped when this is called, to the range that pass wrote. Before the table has been laid out that range is 0, so the call scrolls to the top and nothing more; after a model change in the same turn the range still describes the old rows. On a mounted table, or to scroll before the first layout, use a handle, which defers the computation to the next layout pass.

pub fn set_sort(&self, col_id: Option<&str>, dir: SortDirection)

Set the active sort imperatively. Equivalent to writing to sort_signal directly, except that an unchanged value neither writes nor notifies — see set_column_widths.

pub fn clear_sort(&self)

Clear the active sort.

pub fn set_column_width(&self, col_id: &str, width: f32)

Set or remove a single column's user-resized width override. A non-positive width removes the entry (the column reverts to its declared width policy).

pub fn set_column_widths(&self, widths: HashMap<String, f32>)

Replace the full width-override map (typically used to restore a persisted layout).

A no-op when the map is unchanged, so the documented signal round trip (see docs/table-view.md, "Persistence", which shows it for the column order) terminates instead of recursing: Signal::set has no equality check of its own, and a live resize writes a width on every pointer move.

pub fn set_column_order(&self, order: Vec<String>)

Replace the column-order list. Ids not declared on this table are silently dropped on the next layout pass.

pub fn set_column_pinning(&self, col_id: &str, side: PinnedSide)

Put a single column on side: PinnedSide::Leading or PinnedSide::Trailing pins it, PinnedSide::None unpins it, a column declared pinned (Column::pinned) included.

Writes column_pinning_signal the way a header drag does: an entry for a column moved off its declared side, and none for a column put back on it.

pub fn ensure_row_visible(&self, row: usize)

Scroll the minimum distance needed to make row visible, now, against the viewport, row offsets and scroll range of the last layout pass. A no-op before the first layout pass, when the viewport height is not yet known. A handle defers the computation to the next layout pass instead.

pub fn handle(&self) -> TableViewHandle

A handle that scrolls this table once it is mounted.

Take it while describing the tree, before the table is handed to ctx.add(...); it stays attached to the table across rebuilds. See TableViewHandle.

pub struct TableViewHandle

Import: use teksilo::widgets::TableViewHandle;

A handle on a mounted TableView, to scroll it to a row from outside the widget — a view-model reacting to a search hit, a "go to row" command.

Cheap to clone, valid before the table is mounted, and it survives the table's rebuilds. Its methods never compute an offset when they are called: they record the request and ask for a layout pass, and the table applies it there, after row measurement and scroll anchoring have settled. So a model change made in the same turn (rows inserted above, say) is accounted for, a request made before mount is applied at the first layout, and a later request replaces an earlier pending one. A request on a table with no rows is dropped; a row past the end reveals the last row.

#![allow(unused)]
fn main() {
use teksilo_data::ListModel;
use teksilo_widgets::TableView;
let model: ListModel<String> = ListModel::new();
let table = TableView::new(model);
let handle = table.handle();
// … add the columns, `ctx.add(table)`, then later, from any handler:
handle.ensure_row_visible(1_250);
}

#![allow(unused)]
fn main() {
pub struct TableViewHandle { /* fields */ }
}

Methods

pub fn scroll_to_row(&self, row: usize)

Scroll so that row is aligned to the top of the viewport, as far as the scroll range allows, at the next layout pass.

pub fn ensure_row_visible(&self, row: usize)

Scroll the minimum distance that makes row fully visible, at the next layout pass; no scroll when it already is.

pub enum ColumnWidth

Import: none — ColumnWidth is public in a private module of teksilo-widgets and nothing re-exports it.

How a column's width is determined during layout.

#![allow(unused)]
fn main() {
pub enum ColumnWidth { /* variants */ }
}

Variants

• Fixed (f32) — Exact pixel width. Clamped by min_width / max_width.
• Flex (f32) — Share of the leftover space proportional to the flex factor — behaves like CSS flex-grow. The factor must be > 0.0.
• Auto — Intrinsic content width (currently approximated by the table's min_column_width_default token; refined to probe the header label and visible cells).

pub enum PinnedSide

Import: none — PinnedSide is public in a private module of teksilo-widgets and nothing re-exports it.

Whether a column is pinned to one side of the table.

#![allow(unused)]
fn main() {
pub enum PinnedSide { /* variants */ }
}

Variants

• Leading — Pinned against the leading edge — stays visible during horizontal scroll.
• None — Not pinned — scrolls horizontally with the body.
• Trailing — Pinned against the trailing edge.

pub enum Alignment

Import: none — Alignment is public in a private module of teksilo-widgets and nothing re-exports it.

Horizontal alignment of a cell's content within its column.

#![allow(unused)]
fn main() {
pub enum Alignment { /* variants */ }
}

Variants

• Leading
• Center
• Trailing

pub enum TruncationPolicy

Import: none — TruncationPolicy is public in a private module of teksilo-widgets and nothing re-exports it.

Strategy when a cell's text overflows its column.

#![allow(unused)]
fn main() {
pub enum TruncationPolicy { /* variants */ }
}

Variants

• Ellipsis — …-elide the trailing portion. Default.
• None — Don't truncate; let the cell content draw beyond the column edge (the body pane's clip will hide it).
• Fade — Fade the trailing portion — gradient mask.

pub enum GridLines

Import: none — GridLines is public in a private module of teksilo-widgets and nothing re-exports it.

Whether the table draws grid lines between rows / columns.

#![allow(unused)]
fn main() {
pub enum GridLines { /* variants */ }
}

Variants

• None
• Horizontal
• Vertical
• Both

pub enum ColumnResizePolicy

Import: none — ColumnResizePolicy is public in a private module of teksilo-widgets and nothing re-exports it.

Whether column resize commits the new width on every drag tick (Live) or only on Ended (OnRelease).

#![allow(unused)]
fn main() {
pub enum ColumnResizePolicy { /* variants */ }
}

Variants

• Live
• OnRelease

pub struct EditTriggers

Import: none — EditTriggers is public in a private module of teksilo-widgets and nothing re-exports it.

Which gestures open a cell editor — a set, composed with |, after Qt's QAbstractItemView::EditTriggers.

A set rather than an enum of named combinations, because the combinations are the caller's to choose: "one click" and "F2 or one click" are ordinary requests that a closed enum of F2 / F2OrType / F2OrTypeOrDoubleClick / DoubleClick / None could not express at all.

Set table-wide with TableView::edit_triggers / TreeTableView::edit_triggers, and per column with Column::edit_triggers — the column wins where it sets one. Only cells of an editable column ever open an editor, whatever the triggers say; the two are the same split Qt makes between a view's editTriggers and an item's ItemIsEditable.

SINGLE_CLICK claims the press. A cell that edits on one click does not also select its row — the same trade any interactive cell content already makes, and the reason it is per column: put it on the columns that are nothing but a value, and leave the row's own column alone.

#![allow(unused)]
fn main() {
pub struct EditTriggers(u8);
}

Methods

pub const NONE: Self = Self(0);

Editing is never opened by the view. Cells of an editable column still render normally; nothing reaches on_cell_edit_request.

pub const F2: Self = Self(1 << 0);

F2 on the focused cell.

pub const ANY_KEY: Self = Self(1 << 1);

Any printable character typed on the focused cell. Note that the keystroke that opens the editor is not delivered into it — the editor does not exist until the next build — so this reads as "F2 with an extra key", and it shadows type-ahead on every editable column.

pub const SINGLE_CLICK: Self = Self(1 << 2);

A single click on the cell. Claims the press, so that cell no longer selects its row.

pub const DOUBLE_CLICK: Self = Self(1 << 3);

A double click on the cell. It takes the gesture from row activation on this column — a column that edits on double-click must not also open its row on the same click — while every other column still activates.

pub const ALL: Self = Self(0b0000_1111);

Every trigger at once.

pub const fn contains(self, other: Self) -> bool

true when every trigger in other is present.

pub const fn is_empty(self) -> bool

true when nothing opens an editor.

pub const fn union(self, other: Self) -> Self

pub const fn intersection(self, other: Self) -> Self

pub enum TabTraversal

Import: none — TabTraversal is public in a private module of teksilo-widgets and nothing re-exports it.

Tab / Shift-Tab traversal policy across cells of a row.

Regardless of the policy, Ctrl+Tab / Ctrl+Shift+Tab always move focus out of the table to the next / previous focusable widget — the reliable escape from CellsThenRows, so keyboard focus is never trapped.

#![allow(unused)]
fn main() {
pub enum TabTraversal { /* variants */ }
}

Variants

• CellsThenRows — Tab moves to the next cell within the row, then wraps to the first cell of the next row. Default. (Ctrl+Tab leaves the table.)
• OutOfTable — Tab leaves the table once the focused cell is reached at the row boundary; the focus owner is whatever follows the table in tab order.

pub struct CellContext

Import: none — CellContext is public in a private module of teksilo-widgets and nothing re-exports it.

Per-cell context handed to a column's cell delegate during build.

#![allow(unused)]
fn main() {
pub struct CellContext { /* fields */ }
}

Fields

• row_index: usize — Row index in the visible-list space (post sort/filter).
• col_id: String — Column id (slug supplied at construction).
• col_index: usize — Visible-column index, starting at 0 in display order.
• is_selected: bool — Whether this row (or this specific cell, in cell-selection mode) is part of the current selection.
• is_focused: bool — Whether this cell currently carries the keyboard focus.
• is_hovered: bool — Whether the pointer is hovering this cell.
• is_editing: bool — Whether editing_cell_signal matches this cell.
• depth: Option<usize> — TreeTableView only — depth of the row in the hierarchy. None for flat tables.
• is_tree_column: bool — TreeTableView only — true on the column hosting the twist arrow.

pub struct ColumnContext

Import: none — ColumnContext is public in a private module of teksilo-widgets and nothing re-exports it.

Per-column-header context handed to a column's header delegate.

#![allow(unused)]
fn main() {
pub struct ColumnContext { /* fields */ }
}

Fields

• col_id: String
• col_index: usize
• sort: Option<SortDirection> — Active sort direction if this column is the current sort column.
• filter_text: String — Current filter text (empty = no filter).
• is_hovered: bool

pub struct ColumnSpec

Import: none — ColumnSpec is public in a private module of teksilo-widgets and nothing re-exports it.

What a column is to its header: id, title, width policy and the user gestures it allows — every part of a Column except how its cells are built.

TableHeader takes a list of these, which is what lets an application put the table header over rows it lays out itself. A Column<T> carries one too and forwards its builders to it, so the two declare a column with the same calls and the same defaults.

The id must be a stable, unique string: it is the key the sort, the filters, the width map and the column order use.

#![allow(unused)]
fn main() {
pub struct ColumnSpec { /* fields */ }
}

Methods

pub fn new(id: impl Into<String>, title: impl Into<LocalizedString>) -> Self

A column with a stable id and a localized title. Defaults: a Flex(1.0) width, resizable, reorderable, neither sortable nor filterable, unpinned.

pub fn width(mut self, w: ColumnWidth) -> Self

How the column's width is resolved. Default Flex(1.0).

pub fn min_width(mut self, px: f32) -> Self

The narrowest the column resolves or resizes to. Default: the table style's MIN_COLUMN_WIDTH_DEFAULT.

pub fn max_width(mut self, px: f32) -> Self

The widest the column resolves or resizes to. Default: unbounded.

pub fn alignment(mut self, a: Alignment) -> Self

Horizontal alignment of the column's content. Default Leading.

pub fn resizable(mut self, b: bool) -> Self

Whether the header's divider grip resizes the column. Default true.

pub fn reorderable(mut self, b: bool) -> Self

Whether the header cell can be dragged to reorder the column. Default true.

pub fn sortable(mut self, b: bool) -> Self

Whether a click on the header cycles the sort. Default false.

pub fn filterable(mut self, b: bool) -> Self

Whether the header offers the filter popover. Default false.

pub fn pinned(mut self, side: PinnedSide) -> Self

Which side, if any, the column is pinned to. Default None.

pub fn id(&self) -> &str

Stable column id.

pub struct Column

Import: none — Column is public in a private module of teksilo-widgets and nothing re-exports it.

Single column declaration. Column ids must be stable, unique strings — they're the persistence key for sort, filter, width, and ordering.

#![allow(unused)]
fn main() {
pub struct Column<T: 'static> { /* fields */ }
}

Methods

pub fn new( id: impl Into<String>, header: impl Into<LocalizedString>, cell: impl Fn(&T, &CellContext) -> Box<dyn Widget> + 'static, ) -> Self

Create a column with a stable id, a localized header label, and a cell builder that takes &T plus a CellContext and returns a boxed widget.

pub fn width(mut self, w: ColumnWidth) -> Self

pub fn min_width(mut self, px: f32) -> Self

pub fn max_width(mut self, px: f32) -> Self

pub fn alignment(mut self, a: Alignment) -> Self

pub fn resizable(mut self, b: bool) -> Self

pub fn reorderable(mut self, b: bool) -> Self

pub fn sortable(mut self, b: bool) -> Self

pub fn filterable(mut self, b: bool) -> Self

pub fn editable(mut self, b: bool) -> Self

Mark the column as editable. Default false. F2 / type-to-edit only enter edit mode on cells of editable columns; the on_cell_edit_request hook also fires only for these. Cells of non-editable columns continue to render their static delegate regardless of editing_cell.

pub fn edit_triggers(mut self, triggers: EditTriggers) -> Self (default: None)

Override the view's EditTriggers for this column alone.

The reason the set is not only table-wide: a table's columns rarely want the same gesture. A tree column has to keep click-to-select and double-click-to-open, while the plain value columns beside it are exactly where one click to edit belongs. Unset columns inherit the view's set.

pub fn effective_edit_triggers(&self, view: EditTriggers) -> EditTriggers

The triggers in force for this column, given the view's set — the question the body pane and the key handler both ask, and the one an application's own tests want to ask about their column set.

A non-editable column never opens an editor, whatever either says.

pub fn pinned(mut self, side: PinnedSide) -> Self

pub fn truncation(mut self, p: TruncationPolicy) -> Self

pub fn header_override( mut self, f: impl Fn(&ColumnContext) -> Box<dyn Widget> + 'static, ) -> Self

Override the default header rendering (label + sort/filter indicators). The closure receives a ColumnContext reflecting the current sort/filter state.

pub fn id(&self) -> &str

Stable column id (the persistence key for sort, filter, width, and ordering signals).

pub enum TableSelectionMode

Import: none — TableSelectionMode is public in a private module of teksilo-widgets and nothing re-exports it.

Selection mode for a TableView or TreeTableView.

#![allow(unused)]
fn main() {
pub enum TableSelectionMode { /* variants */ }
}

Variants

• None — No selection allowed.
• SingleRow — At most one row selected at a time.
• MultiRow — Multiple rows selectable; Ctrl-click toggles, Shift-click extends. Default.
• SingleCell — Excel-style: at most one cell selected at a time.
• MultiCell — Excel-style: rectangular cell selection.

Methods

pub fn is_cell_mode(self) -> bool

Whether the mode operates on cells rather than entire rows.

pub fn is_multi(self) -> bool

Whether the mode allows more than one entry to be selected.

pub struct CellSelectionModel

Import: none — CellSelectionModel is public in a private module of teksilo-widgets and nothing re-exports it.

Cell-level selection state for TableSelectionMode::SingleCell / MultiCell. Tracks (row, col) pairs in visible-index space.

Mirrors teksilo_data::SelectionModel's API surface (signal-backed, auto-adjustable on data mutations) but keyed by (row, col) instead of row alone.

#![allow(unused)]
fn main() {
pub struct CellSelectionModel { /* fields */ }
}

Methods

pub fn new(mode: TableSelectionMode) -> Self

Construct a model. Panics if mode is not a cell mode — callers in row mode should use teksilo_data::SelectionModel.

pub fn mode(&self) -> TableSelectionMode

pub fn selection_signal(&self) -> Signal<BTreeSet<(usize, usize)>>

pub fn is_selected(&self, row: usize, col: usize) -> bool

pub fn count(&self) -> usize

pub fn select(&self, row: usize, col: usize)

Replace the selection with the single cell (row, col) and set the anchor.

pub fn toggle(&self, row: usize, col: usize)

Toggle the cell (row, col) (Ctrl-click). In SingleCell mode this behaves like select.

pub fn extend_to(&self, row: usize, col: usize)

Extend the selection to include the rectangular range from the anchor to (row, col). In SingleCell mode this falls back to select.

pub fn select_cells(&self, cells: impl IntoIterator<Item = (usize, usize)>)

Replace the selection with an arbitrary set of cells, committing it as the base a following Shift range extends around.

Backs the two spreadsheet chords a rectangle cannot express: Ctrl+Space selects a column and Shift+Space a row, neither of which is an anchor-to-cursor block. Declines outside MultiCell for the reason select_all declines outside a cell mode: a set of cells is not something a single-selection or row-selection model can hold, and quietly storing one would break the mode's own invariant.

pub fn select_all(&self, row_count: usize, col_count: usize)

pub fn clear(&self)

pub fn adjust_for_row_insert(&self, at_row: usize, count: usize)

Adjust selection after count rows are inserted starting at at_row. Existing selections at indices >= at_row shift up.

pub fn adjust_for_row_remove(&self, at_row: usize, count: usize)

Adjust selection after count rows starting at at_row are removed. Selections within the removed range are dropped; later rows shift down.

pub fn adjust_for_row_move(&self, from: usize, to: usize, count: usize)

Adjust selection after a block of count rows moved from from to to (a post-removal index, matching ListModel::move_item). Selected cells follow their rows; columns are untouched.

pub fn adjust_for_column_insert(&self, at_col: usize, count: usize)

Adjust selection after count columns are inserted at at_col.

Reserved for future dynamic-column support. TableView/TreeTableView columns are declared once via .add_column()/.columns() and are static for the widget's lifetime — there is no runtime insert/remove API today, so nothing calls this. A column reorder or pin-toggle permutes positions instead (see remap_columns), which is what the current views actually use. Kept (not removed) as public API in case a future dynamic-column feature needs the offset-shift semantics this and adjust_for_column_remove already implement and test.

pub fn adjust_for_column_remove(&self, at_col: usize, count: usize)

Adjust selection after count columns starting at at_col are removed.

Reserved for future dynamic-column support — see the doc comment on adjust_for_column_insert; nothing calls this today for the same reason.
