TreeView

TreeView — a virtualized, expandable/collapsible hierarchical list widget.

Public types

Public functions

TreeView

TreeRowContext

TreeViewHandle

Detailed description

Displays a TreeModel<T> as an indented tree. Internally each view owns a TreeSlice for independent expand state, so two TreeViews on the same model can be open at different depths simultaneously. Only rows in the visible viewport + a small buffer have live widgets — rows outside the buffer are dormant, matching ListView's virtualization model. An external TreeDataSource is also accepted via TreeView::from_source when the data lives outside a TreeModel.

Row heights come in three modes: uniform (item_height, default fast path), exact per-flat-index callback (item_height_fn), and auto-measured (auto_item_height — height-for-width per row, scroll-anchored).

Scrolling to a row

handle returns a TreeViewHandle, a cheap Clone taken before the view is added and usable from any handler afterwards. Its scroll_to_index and ensure_index_visible take a flat visible row index and are applied at the next layout pass, after row measurement and scroll anchoring, so they may follow an expansion in the same turn, or be called before mount:

#![allow(unused)]
fn main() {
use teksilo_widgets::TreeView;
use teksilo_widgets::primitives::TextWidget;
use teksilo_data::TreeModel;
use teksilo_i18n::lit;
let model: TreeModel<String> = TreeModel::new();
let tree = TreeView::new(model, |item, _entry, _selected| {
    Box::new(TextWidget::new(lit!(item)))
});
let handle = tree.handle();
// … `ctx.add(tree)`; then, from a handler, after expanding the row's
// ancestors in the same turn:
handle.ensure_index_visible(42);
}

The keyboard cursor

The tree has one current row, its keyboard cursor: the row the arrow keys step from and the one it names to assistive technology as its active descendant while it holds keyboard focus. The same TreeViewHandle reads and moves it, in flat visible indices: cursor, set_cursor (clamped to the last visible row; keyboard focus, the selection and the scroll offset are left alone) and cursor_signal, for an application to observe. The cursor follows its row through an expansion or a collapse above it, whoever set it. A cursor set before mount is there at the first build.

In a single selection the cursor follows the selection. In a multiple selection the two are separate: Ctrl+↓ moves the cursor and leaves the selection, and a selection written from outside leaves the cursor where it was. Read the cursor, not the first selected row, for "the row the user is on".

Pan to scroll

The view installs common::scrollable::ScrollableBehavior, which gives it the shared wheel arithmetic, a finger's pan and the PanClaim that puts it on a pan's claimant chain. A pan scrolls it, the release coasts, and a pan it cannot absorb hands the whole event to the container outside. Vertical only: this view owns no horizontal offset, so a horizontal pan is declined and chains outward. A pan that starts on a row scrolls rather than activating it, toggling its chevron, or collapsing a multi-selection onto it — the three things a release on that row commits. Activation is a gesture, so the arbitration cancels it; the chevron and the deferred collapse are raw PointerUp arms the arbitration cannot reach, so each asks data_views::release_completes_the_press whether the release still belongs to the row.

Keyboard

Arrows move the cursor; Home / End reach the first and last visible row and PageUp / PageDown a viewport of them, each moving the selection unless the accelerator is held, which moves the cursor alone — in a multiple selection only: a single selection always moves with the cursor, a selection the application sets moves the cursor onto it, and a structural change carries the selection along with its row. Shift extends a range from the anchor and Ctrl+Shift extends it additively.

→ opens a closed node and, on one already open, moves into its first child; ← closes an open node and, on a leaf or a closed one, ascends to the parent. Both mirror under RTL. * expands the whole subtree, + and - one level. Space selects or toggles, Enter activates, Ctrl+A and Ctrl+Shift+A select and deselect everything, and Ctrl+Arrow with Ctrl+Space build a disjoint selection. On macOS ⌘↓ opens a row, ⌘↑ ascends, and ⌥→/⌥← expand or collapse a subtree.

The full table, and why some of it is platform-specific, is in docs/data-view-keyboard.md.

Example

#![allow(unused)]
fn main() {
use teksilo_widgets::TreeView;
use teksilo_widgets::primitives::{HStack, Padding, TextWidget};
use teksilo_data::TreeModel;
use teksilo_i18n::lit;
struct Item { title: String }
let tree_model: TreeModel<Item> = TreeModel::new();
let _w = TreeView::new(tree_model, |item, entry, _selected| {
    let indent = entry.depth as f32 * 20.0;
    Box::new(HStack::new()
        .child(Padding::new(0.0, 0.0, 0.0, indent))
        .child(TextWidget::new(lit!(&item.title))))
})
.item_height(28.0);
}

Density

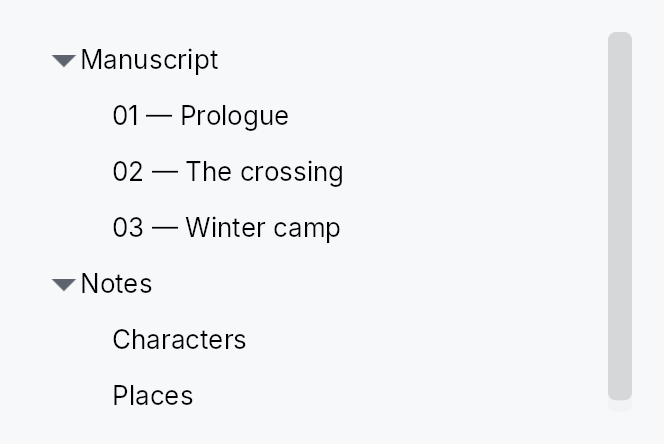

The picture above is the widget at TargetDensity::Compact, the mouse-and-keyboard ladder. Below is the same subject on the same canvas with only the ladder changed, so what moves is the density and nothing else — where the subject no longer fits, that is what the denser targets cost it at that size. See docs/density-and-targets.md.

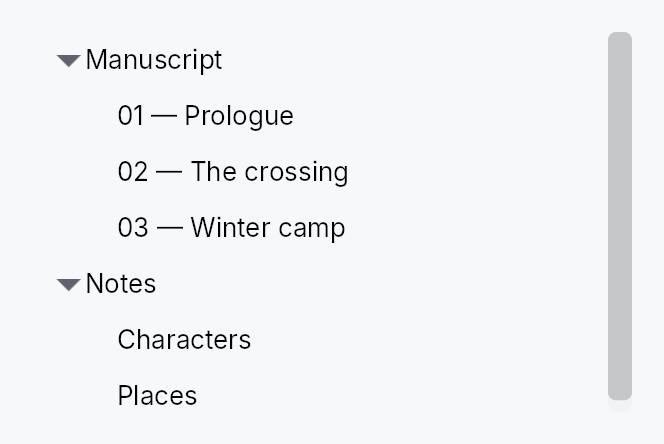

Touch

API reference

📖 Full rustdoc API for this module

pub struct TreeRowContext

Import: use teksilo::widgets::TreeRowContext;

Per-row context passed to a 4-arg TreeView delegate. Carries a reference to the slice handle and the row's NodeId so the delegate can wire chevron toggles and other tree-aware behavior without manually cloning state outside the closure.

Created internally by TreeView::new_with_context. Not constructed directly by user code.

#![allow(unused)]
fn main() {
pub struct TreeRowContext<'a, T: 'static> { /* fields */ }
}

Methods

pub fn toggle_callback(&self) -> std::rc::Rc<dyn Fn(&mut teksilo_core::widget::EventContext)>

Toggle callback for this row's chevron. Wires in one line: .on_chevron_toggle_rc(ctx.toggle_callback()).

pub fn slice_handle(&self) -> TreeSliceHandle<T>

Cloned handle to the slice — call .toggle_expand(node), .expand(node), .collapse(node) directly.

pub fn node_id(&self) -> teksilo_data::NodeId

The NodeId of this row in the backing TreeModel.

pub struct TreeView

Import: use teksilo::widgets::TreeView;

#![allow(unused)]
fn main() {
pub struct TreeView<T: 'static> { /* fields */ }
}

Methods

pub fn handle(&self) -> TreeViewHandle

A handle that scrolls this tree once it is mounted.

Take it while describing the tree, before the view is handed to ctx.add(...); it stays attached to the view across rebuilds. See TreeViewHandle.

pub fn new( model: TreeModel<T>, delegate: impl Fn(&T, &FlatEntry, bool) -> Box<dyn Widget> + 'static, ) -> Self

Create a new TreeView backed by a TreeModel<T>.

The delegate receives (&item, &FlatEntry, selected) and returns a boxed widget. The FlatEntry provides depth, has_children, and is_expanded for rendering indentation and expand/collapse toggles.

pub fn new_with_context( model: TreeModel<T>, delegate: impl Fn(&T, &FlatEntry, bool, &TreeRowContext<'_, T>) -> Box<dyn Widget> + 'static, ) -> Self

Like new, but the delegate also receives a TreeRowContext from which .toggle_callback() can be pulled in a single line — eliminating the need to manually clone the slice handle outside the closure.

#![allow(unused)]
fn main() {
use teksilo_widgets::{TreeView, StandardTreeItem};
use teksilo_data::TreeModel;
use teksilo_i18n::lit;
struct Item { title: String }
let model: TreeModel<Item> = TreeModel::new();
let _w = TreeView::new_with_context(model, |item, entry, selected, ctx| {
    Box::new(
        StandardTreeItem::new(lit!(&item.title))
            .from_entry(entry)
            .selected(selected)
            .on_chevron_toggle_rc(ctx.toggle_callback())
    )
});
}

pub fn from_source<S: TreeDataSource<Item = T>>( source: S, delegate: impl Fn(&T, &TreeRow, bool) -> Box<dyn Widget> + 'static, ) -> Self

Create a TreeView backed by any TreeDataSource — an external source of truth (e.g. an entity store) carrying its own Key, so it needs no TreeModel mirror. The delegate receives (&item, &TreeRow, selected); TreeRow exposes depth / has_children / is_expanded and a one-call chevron toggle_callback(). Drop validation + lazy windowing route through the source's can_accept / accept_drop / row_state.

pub fn from_source_keyed<S: TreeDataSource<Item = T>>( source: S, keyed: KeyedSelectionModel<S::Key>, delegate: impl Fn(&T, &TreeRow, bool) -> Box<dyn Widget> + 'static, ) -> Self where S::Key: ItemKey,

Like from_source but with keyed selection: the KeyedSelectionModel<S::Key> tracks selection by source identity, so it survives expand / collapse / filter / reorder and stays consistent across two views of the same source. The view stays TreeView<T> — the Key is captured here. Pruning consults the source's contains_key, so a collapsed-but-present node keeps its selection.

pub fn enabled(mut self, enabled: impl Into<Prop<bool>>) -> Self

Enable or disable the whole view. A disabled view greys out and stops accepting focus / selection / keyboard input (arena-gated).

pub fn overscroll_behavior(mut self, behavior: OverscrollBehavior) -> Self

Set the scroll-chaining behavior at the boundary (default OverscrollBehavior::Chain; Contain disables chaining to an ancestor scrollable).

pub fn item_height(mut self, height: f32) -> Self

Set the fixed height per row (default 28.0) — the uniform fast path. Mutually exclusive with item_height_fn and auto_item_height; the last mode setter wins.

pub fn smooth_scrolling(mut self, enabled: bool) -> Self

Enable or disable animated wheel scrolling (enabled by default). When disabled, wheel events snap immediately to the new offset.

pub fn smooth_scroll_duration(mut self, duration: Duration) -> Self

Duration of the smooth scroll animation (default 150 ms).

pub fn scroll_signal(mut self, scroll: Signal<f32>) -> Self

Scroll from a signal the caller owns, so the position survives the view.

A TreeView mints its own by default, which is right for a tree whose lifetime is the writer's: it is created once and scrolls until they leave. It is wrong for one inside a dock, whose content is torn down and rebuilt whenever the layout changes -- opening a panel beside it, or the first reveal of the band a result previews into. The tree comes back at the top, and the row the writer was reading is somewhere above it.

Hold the signal wherever the model lives and the position outlives the widget, as the expand set already does.

⚠ Pass an animated signal (Signal::new_animated) unless smooth scrolling is off: the view animates this one, and a plain signal makes every wheel notch a jump.

pub fn scroll_bar_style(mut self, style: ScrollBarMode) -> Self

How the scroll bar is displayed (default Permanent). Overlay and Thin float the bar over the content instead of reserving a layout column for it, mirroring ScrollArea::scroll_bar_style.

pub fn item_height_fn(mut self, f: impl Fn(usize) -> f32 + 'static) -> Self

Per-row heights from a callback over the flat (visible) index. The callback must be pure (same index + same data → same height); it is re-swept from the first changed flat index on every model change or expand/collapse. No measurement pass runs.

pub fn auto_item_height(mut self, estimated: f32) -> Self

Auto-measured row heights: each realized row is measured at the tree's content width (height-for-width), unrealized rows assume estimated. Scroll anchoring keeps content above the viewport stationary as estimates are corrected; measured heights above a toggled row survive expand/collapse (divergence-driven invalidation).

pub fn row_click_expands(mut self, b: bool) -> Self

Whether a row-body PointerUp on a branch row auto-toggles its expansion (default true). Set to false when the delegate provides its own chevron tap target (e.g. StandardTreeItem) — without this, the auto-toggle fires in addition to the chevron's own click and they cancel out, leaving the row expanded only on body clicks.

pub fn selection(mut self, sel: SelectionModel) -> Self

Set the index-based selection model (visible positions). Unlike ListView (where every structural change carries an insert/remove DataChange the selection index-shifts against), a TreeView's structural changes — including expand/collapse — surface only as a version bump, with no delta to shift a selected index by. The keyboard cursor tracks its row by identity (a RowAnchor), and in a single selection the view keeps the cursor on the selected row, so the selection follows that row to its new position. In a multiple selection a moved row's old index is only clamped into range, not followed. A selected row that disappears — removed, or hidden by a collapse — leaves the selection at its clamped position in either mode. For selection that survives all of these, use keyed_selection instead.

pub fn keyed_selection(mut self, keyed: KeyedSelectionModel<NodeId>) -> Self

Set a keyed selection model (by NodeId). Selection is tracked by node identity, so it survives expand / collapse, filtering, and node moves — and stays consistent if two views share the model. Pruned of deleted nodes on each slice change. Mutually exclusive with selection (last one set wins).

pub fn reorderable(mut self, enabled: bool) -> Self

Enable intra-widget drag reordering.

When enabled, tree rows can be dragged to reparent or reorder them. Before/Into/After is chosen by where in the row the pointer drops; the move is cycle-guarded — a drop onto the node itself or into its own subtree is refused and shows no insertion line. Keyboard equivalent: Alt+ArrowUp/Down.

pub fn exportable(mut self, mode: DragTransferMode) -> Self where T: Clone,

Make rows droppable outside this view — on a DropTarget, another data view, or the OS.

A dragged row (or the whole selection, when the pressed row is part of a multi-selection) carries clones of its items in a public RowDragData<T>, so a foreign receiver can pull them out with payload.get_typed::<RowDragData<T>>() / DropTarget::on_drop_typed::<RowDragData<T>>() — no serialization. This also makes rows a drag source even without reorderable.

mode chooses what happens to the origin rows once a foreign target accepts them: DragTransferMode::Move removes them (via the source's on_drag_out, or on_rows_transferred_out), DragTransferMode::Copy leaves them. A same-view reorder is never a transfer, so mode never affects it. Requires T: Clone.

pub fn export_external(mut self, f: impl Fn(&[T]) -> Vec<(String, Vec<u8>)> + 'static) -> Self where T: Clone,

Additionally advertise the dragged rows as MIME data so they can be dropped on a DropZone or exported to another application / window via the OS. f maps the dragged items to (mime_type, bytes) pairs (e.g. text/plain, text/uri-list, an app-specific application/x-…). Implies exportable (defaulting to DragTransferMode::Move if not already set). Requires T: Clone.

pub fn on_rows_transferred_out( mut self, f: impl Fn(&[usize], &mut teksilo_core::widget::EventContext) + 'static, ) -> Self

Override how rows moved out to a foreign target are removed from this view. Receives the dragged rows' indices (descending-safe) and the live context. Without this, an exportable Move drag removes them through the source's on_drag_out (works out of the box for a TreeSlice/TreeModel).

pub fn accept_foreign_rows(mut self, accept: bool) -> Self

Accept exported rows dropped from a different view or source without writing a custom TreeDataSource. Pair with on_rows_received, which is handed the dropped items and the insertion index. (Same-view reorder is reorderable; a custom TreeDataSource can still accept foreign drops through its can_accept/accept_drop instead.)

pub fn on_rows_received( mut self, f: impl Fn(Vec<T>, usize, &mut teksilo_core::widget::EventContext) + 'static, ) -> Self

Handler for rows accepted via accept_foreign_rows: (items, insertion_index, ctx). Insert them into your model at the index.

pub fn on_activate( mut self, f: impl Fn(usize, &mut teksilo_core::widget::EventContext) + 'static, ) -> Self

Set the row-activation handler — invoked with the flat row index on a primary click on the row body (per activate_on, which defaults to a double click), or Enter on the focused row. Activation is distinct from selection: arrow-key navigation and Space move / toggle the selection but do not activate, so a view can open/commit a row on a deliberate click/Enter without firing on every navigation step.

pub fn activate_on(mut self, mode: crate::data_views::ActivateOn) -> Self

Choose single- vs double-click activation (default ActivateOn::DoubleClick — the cross-platform convention; pass SingleClick for the KDE/web/Scrivener feel). Enter activates in either mode.

pub fn row_tooltip_sticky(mut self, on: bool) -> Self

Whether a composite row tooltip offers dwell-to-sticky promotion. Default true.

Turn it off for a read-only row card: with nothing to reach into there is nothing to pin, so the countdown indicator would promise an interaction that does not exist and the surface would outlive the pointer for no reason.

pub fn row_tooltip( mut self, f: impl Fn(usize, &T) -> Option<teksilo_i18n::LocalizedString> + 'static, ) -> Self

Per-row plain tooltip: one line of text for the row under the pointer.

The resolver receives the row's flat index and its item; returning None leaves that row without a tip. Mutually exclusive with row_rich_tooltip and row_composite_tooltip — last setter wins, matching the per-widget tooltip matrix.

Opens to the row's trailing side, never below it: rows stack vertically, so a tip below would cover the next row.

pub fn row_rich_tooltip( mut self, f: impl Fn(usize, &T) -> Option<crate::tooltip::RichTooltipSource> + 'static, ) -> Self

Per-row rich tooltip — a registry key or inline TooltipContent, both of which convert into RichTooltipSource. See row_tooltip for the shared semantics.

pub fn row_composite_tooltip( mut self, f: impl Fn(usize, &T) -> Option<Box<dyn teksilo_core::widget::Widget>> + 'static, ) -> Self

Per-row composite tooltip — an arbitrary widget tree describing the row.

The body is built for every realized row (the virtualization window) and rebuilt with it, so keep the resolver cheap and defer anything costly to the body's own first paint, which only runs if the tip is actually shown. See row_tooltip for the rest.

pub fn type_ahead_label(mut self, label: impl Fn(&T) -> String + 'static) -> Self

Enable type-ahead ("type to jump"): typing a printable character while the tree has keyboard focus jumps the selection to the next visible row whose label starts with the accumulated search term, wrapping around (Qt keyboardSearch / macOS & Windows type-select). label(&item) yields the searchable text; matching is ASCII-case-insensitive. A pause longer than the type_ahead_timeout starts a fresh term.

pub fn type_ahead_timeout(mut self, timeout: Duration) -> Self

Reset window between keystrokes before the type-ahead search term clears (default 500 ms). A zero duration disables type-ahead.

pub fn expand(&self, node: teksilo_data::NodeId)

Expand a node programmatically. No-op on the from_source path (which owns its own expand state — use the source's set_expanded).

pub fn collapse(&self, node: teksilo_data::NodeId)

Collapse a node programmatically. No-op on the from_source path.

pub fn toggle(&self, node: teksilo_data::NodeId)

Toggle a node's expand/collapse state. No-op on the from_source path.

pub fn expand_all(&self)

Expand all nodes. No-op on the from_source path.

pub fn collapse_all(&self)

Collapse all nodes. No-op on the from_source path.

pub fn tree_slice(&self) -> Option<&TreeSlice<T>>

Access the internal TreeSlice (for persistence of expand state). None on the from_source path, which has no TreeSlice (the external source owns expand state).

pub struct TreeViewHandle

Import: use teksilo::widgets::TreeViewHandle;

A handle on a mounted TreeView, to scroll it to a row from outside the widget — a view-model revealing the node a search found, say.

Rows are addressed by their flat visible index: the position of the row among the rows currently shown, counting the children of expanded nodes and skipping those of collapsed ones (the index the delegate's selection and the keyboard use).

Cheap to clone, valid before the view is mounted, and it survives the view's rebuilds. Its methods never compute an offset when they are called: they record the request and ask for a layout pass, and the view applies it there, after row measurement and scroll anchoring have settled. So a structural change made in the same turn (a node expanded above the target, say) is accounted for, a request made before mount is applied at the first layout, and a later request replaces an earlier pending one. A request on an empty tree is dropped; an index past the end reveals the last row.

The handle also reads and moves the tree's keyboard cursor, the row the arrow keys step from and assistive technology is told is current: cursor, set_cursor and cursor_signal, in the same flat visible indices. In a multiple selection the cursor and the selection are separate: the accelerator with an arrow moves the cursor alone, and a selection written from outside leaves the cursor where it was.

#![allow(unused)]
fn main() {
use teksilo_widgets::TreeView;
use teksilo_widgets::primitives::TextWidget;
use teksilo_data::TreeModel;
use teksilo_i18n::lit;
let model: TreeModel<String> = TreeModel::new();
let tree = TreeView::new(model, |item, _entry, _selected| {
    Box::new(TextWidget::new(lit!(item)))
});
let handle = tree.handle();
// … `ctx.add(tree)`; later, after expanding the node's ancestors:
handle.ensure_index_visible(42);
}

#![allow(unused)]
fn main() {
pub struct TreeViewHandle { /* fields */ }
}

Methods

pub fn scroll_to_index(&self, index: usize)

Scroll so the row at the given flat visible index is aligned to the top of the viewport, as far as the scroll range allows, at the next layout pass.

pub fn ensure_index_visible(&self, index: usize)

Scroll the minimum distance that brings the row at the given flat visible index fully into view, at the next layout pass; no scroll when it already is.

pub fn cursor(&self) -> Option<usize>

The flat visible index the keyboard cursor is on, or None while the tree has no cursor: it has not been navigated, clicked or given one by set_cursor. With no cursor the keys start from the first selected row, and from the first or last row when nothing is selected.

The cursor follows its row: an expansion or a collapse above it, or an insertion, moves the index with the row, and a row that leaves the visible rows takes the cursor with it. In a single selection the cursor follows the selection: the keys move them together, and a selection written from outside moves the cursor onto it. In a multiple selection they are separate: the accelerator with an arrow (Ctrl+Arrow) moves the cursor alone, and a selection written from outside leaves the cursor where it was.

pub fn set_cursor(&self, index: Option<usize>)

Move the keyboard cursor to the row at flat visible index index, or remove it with None.

An index past the last visible row is clamped to that row; on an empty tree the cursor is removed. While the tree holds keyboard focus it names the row as its active descendant at the next accessibility update, when the row is realized; the next arrow key steps from it, and the cursor follows that row through later structural changes.

Keyboard focus and the selection are left alone, and the tree does not scroll: pair it with ensure_index_visible to bring the row into view. Usable before the tree is mounted and across its rebuilds; in a single selection the tree seats the cursor on the selected row when it is built and whenever the selection changes.

pub fn cursor_signal(&self) -> Signal<Option<usize>>

A read-only signal of the cursor, as cursor reports it, for an application to observe or bind: a status line naming the current row, actions enabled for it. It changes with every write of the cursor, by the keys, a click, a structural change moving it or set_cursor.
