FormLayout

FormLayout — a two-column settings or preferences form layout.

Public functions

FormLayout

Detailed description

Children are added as label/field pairs via FormLayout::line (inline widgets) or FormLayout::line (pre-registered IDs). Full-width rows that span both columns — section headers, Dividers, or banners — are added via FormLayout::full_width / FormLayout::full_width. The label column auto-sizes to the widest label across all pairs so all field inputs are left-aligned. RTL layouts are handled automatically: the label column migrates to the trailing side and the field column moves to the leading side. Dormant rows are excluded from both measurement and placement.

When an accessible name is provided via FormLayout::label, the widget emits Role::Form so screen-reader users can navigate directly to the form. Without a name it demotes to a presentational GenericContainer.

#![allow(unused)]
fn main() {
use teksilo_widgets::primitives::{FormLayout, TextWidget, RectWidget};
use teksilo_i18n::lit;
let _form = FormLayout::new()
    .label_gap(8.0)
    .row_spacing(6.0)
    .line(TextWidget::new(lit!("Name:")),  RectWidget::new())
    .line(TextWidget::new(lit!("Email:")), RectWidget::new());
}

Density

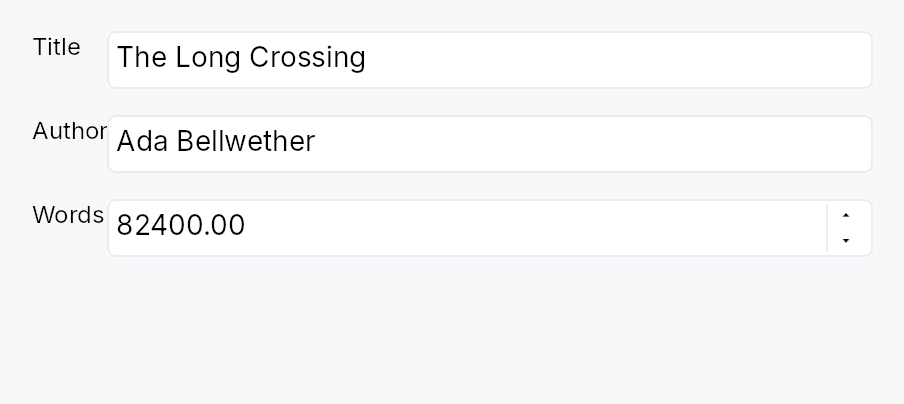

The picture above is the widget at TargetDensity::Compact, the mouse-and-keyboard ladder. Below is the same subject on the same canvas with only the ladder changed, so what moves is the density and nothing else — where the subject no longer fits, that is what the denser targets cost it at that size. See docs/density-and-targets.md.

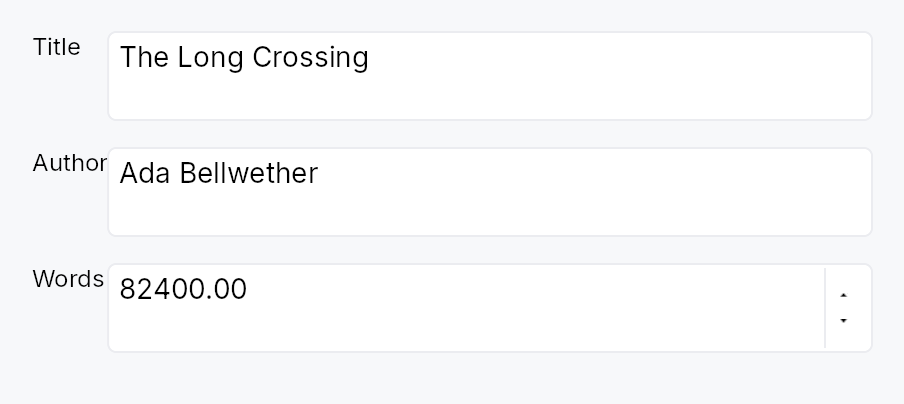

Touch

API reference

📖 Full rustdoc API for this module

pub struct FormLayout

Import: use teksilo::widgets::FormLayout;

A two-column form layout with auto-sized label column.

Children are added as label/field pairs via line() or as full-width rows via full_width(). The label column auto-sizes to the widest label; the field column takes the remaining space.

┌─ label col ─┐ gap ┌── field col ──────────────┐
│ Name:       │     │ [___________________]      │
│ Email:      │     │ [___________________]      │
├─────────────┴─────┴────────────────────────────┤
│ ── Advanced ──────────────────────────────────  │  ← full_width
├─ label col ─┐ gap ┌── field col ──────────────┐
│ Port:       │     │ [____]                     │
└─────────────┘     └────────────────────────────┘

#![allow(unused)]
fn main() {
pub struct FormLayout { /* fields */ }
}

Methods

pub fn new() -> Self

Create an empty FormLayout with zero label gap and zero row spacing.

pub fn label_gap(mut self, gap: f32) -> Self (default: 0.0)

Horizontal gap between the label column and the field column.

pub fn row_spacing(mut self, spacing: f32) -> Self (default: 0.0)

Vertical gap between rows.

pub fn label(mut self, label: impl Into<LocalizedString>) -> Self (default: None)

Set an accessible name for this form. When set, the widget emits the Role::Form landmark so assistive-technology users can navigate directly to it and distinguish it from other forms on the page. When unset, the widget demotes to a presentational GenericContainer — an unnamed landmark is worse than no landmark for AT users.

pub fn line( mut self, label: impl teksilo_core::IntoTeksiChild, field: impl teksilo_core::IntoTeksiChild, ) -> Self

Add a label/field pair row.

pub fn lines<L, F>(self, rows: impl IntoIterator<Item = (L, F)>) -> Self where L: teksilo_core::IntoTeksiChild, F: teksilo_core::IntoTeksiChild,

Add several label/field pair rows from an iterator of (label, field) pairs, in order.

The loop form of line, and the usual one once the form is generated from a settings schema rather than written row by row.

pub fn line_ids(self, rows: impl IntoIterator<Item = (WidgetId, WidgetId)>) -> Self

Add several label/field pair rows from an iterator of (label_id, field_id) pairs, in order.

lines accepts ids in both columns too, so this is the spelling that states the id types outright rather than a capability the other method lacks. Reach for it when a loop has already registered both columns and naming the type reads better than inferring it.

pub fn full_width(mut self, widget: impl teksilo_core::IntoTeksiChild) -> Self

Add a full-width row spanning both columns.

pub fn full_width_rows( self, iter: impl IntoIterator<Item = impl teksilo_core::IntoTeksiChild>, ) -> Self

Add several full-width rows from an iterator, in order.

The loop form of full_width, for a run of banners or section headers that comes from data.
