ColorSwatch

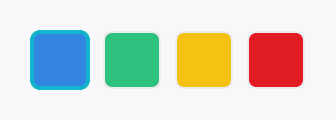

ColorSwatch preview

ColorSwatch — single clickable color cell with Role::ColorWell.

Public widget so apps can compose their own swatch rows or palettes outside of the bundled SwatchGrid. Renders an optional checkerboard underlay when color.a() < 1.0 so transparent swatches read correctly. The displayed color is a Prop<Color> — pass a static Color for a fixed palette entry or a Signal<Color> for a live preview that re-paints whenever the bound value changes (used by ColorPicker's current-color preview and ColorEdit's trigger swatch).

Accessibility

Declares Role::ColorWell; set_color_value carries the RGBA value and set_value carries the formatted hex string so braille and voice output both have a human-readable form. Selected swatches append a localized "selected" suffix to their announced name.

#![allow(unused)]
fn main() {
use teksilo_widgets::color_picker::ColorSwatch;
use teksilo_tokens::Color;
let _swatch = ColorSwatch::new(Color::new(0.21, 0.52, 0.89, 1.0))
    .size(24.0)
    .corner_radius(4.0);
}

Builder methods at a glance

selected, label, size, corner_radius, enabled, on_activate_fn, tooltip, rich_tooltip, rich_tooltip_content, composite_tooltip

API reference

📖 Full rustdoc API for this module

`pub struct ColorSwatch`

Single-cell color swatch.

The displayed color is a Prop<Color> — pass a Color for a static palette entry (the common case in SwatchGrid) or a Signal<Color> for a live preview that re-paints when the bound value changes (used by ColorPicker's current-color preview and ColorEdit's trigger).

#![allow(unused)]
fn main() {
pub struct ColorSwatch { /* fields */ }
}

Methods

`pub fn new(color: impl Into<teksilo_core::signal::Prop<Color>>) -> Self`

Create a swatch displaying color. Accepts a static Color or a Signal<Color> (via impl Into<Prop<Color>>); a reactive value re-paints the cell whenever the signal changes.

`pub fn selected(mut self, selected: bool) -> Self`

Mark the swatch as currently selected, which paints an accent border and appends a localized "selected" suffix to the AT name.

`pub fn label(mut self, label: impl Into<LocalizedString>) -> Self`

Override the accessible label. Default is a localized "Color: #RRGGBB" string derived from the displayed color's hex value.

`pub fn size(mut self, size: f32) -> Self`

Set the swatch cell size in logical pixels (square). Defaults to the theme's recipe_color_picker_style::SWATCH_SIZE.

`pub fn corner_radius(mut self, r: f32) -> Self`

Set the corner radius of the swatch cell in logical pixels. Defaults to recipe_color_picker_style::SWATCH_CORNER_RADIUS.

`pub fn enabled(mut self, enabled: impl Into<teksilo_core::signal::Prop<bool>>) -> Self`

Set the enabled state, statically or reactively. Forwarded to the arena at build time.

`pub fn on_activate_fn(mut self, f: impl Fn(&mut EventContext) + 'static) -> Self`

`pub fn tooltip(mut self, text: impl Into<LocalizedString>) -> Self`

Attach a plain single-line tooltip shown after a hover delay.

Mutually exclusive with Self::rich_tooltip, Self::rich_tooltip_content, and Self::composite_tooltip — this call clears the other slots.

`pub fn rich_tooltip(mut self, key: impl Into<String>) -> Self`

Attach a rich tooltip looked up from the tooltip registry by key.

Mutually exclusive with Self::tooltip, Self::rich_tooltip_content, and Self::composite_tooltip — this call clears the other slots.

Attach a rich tooltip with inline content (no registry lookup required).

Mutually exclusive with Self::tooltip, Self::rich_tooltip, and Self::composite_tooltip — this call clears the other slots.

Attach a composite tooltip whose body is an arbitrary widget tree.

Mutually exclusive with Self::tooltip, Self::rich_tooltip, and Self::rich_tooltip_content — this call clears the other slots.
