Toolbar

Toolbar — a command bar with automatic overflow.

Public types

Public functions

Toolbar

ToolbarAction

ToolbarOverflow

ToolbarItem

Detailed description

Excess actions collapse into a trailing chevron (⌄) that opens a popover menu, mirroring Qt's QToolBar extension button, macOS NSToolbar's overflow menu, and WinUI CommandBar. Synthesized API:

• Actions (ToolbarAction) — a command with a label + icon (both required), an optional tooltip, enabled state, optional toggle (checkable) or dropdown menu, an overflow priority (NSToolbar: lowest priority collapses first), and an always_overflow flag (WinUI secondary commands). Each action has a toolbar form (an IconButton, or a PopoverIconButton when it carries a menu) and a menu form (a MenuItem, or a submenu), so it renders correctly whether inline or in the overflow menu.
• Pinned widgets (ToolbarItem::custom) — arbitrary widgets (a search field, a SegmentedControl) that never collapse.
• Collapsible widgets — an arbitrary widget that does overflow, by supplying an overflow representation (NSToolbar menuFormRepresentation / Qt QWidgetAction): a menu row (ToolbarAction) via ToolbarItem::custom(w).overflow_as(action) (or ToolbarOverflow + ToolbarItem::collapsible; an icon-only control reuses its icon as the menu glyph), or a live embedded widget via ToolbarItem::custom(w).overflow_widget(f) (the factory rebuilds the control — e.g. a ComboBox bound to the same signal — inside the menu so it stays usable while collapsed). When the bar is tight the inline widget is hidden and its overflow form appears in the menu.
• Separators and flexible space (NSToolbar flexibleSpace).
• Toolbar-wide button_size (default Compact), button_style (a shared IconButtonStyle for every action), and orientation.

Overflow is computed every layout pass from each item's intrinsic size (measured even while collapsed, via LayoutContext::measure_intrinsic), so items reappear correctly as the bar widens — no stale-width glitches.

The chevron's drop-down is a real MenuList whose rows are gated by MenuList::item_when, so it sizes compactly to the currently-collapsed rows, carries standard menu chrome, takes focus when opened, and supports arrow / Home / End / Enter keyboard navigation (skipping the hidden rows).

Accessibility (ARIA toolbar pattern). The bar emits Role::Toolbar with its orientation and name. It is a single Tab stop with roving tab-index: arrow keys move focus among the visible controls (and the chevron), Home/End jump to the ends. The chevron announces HasPopup::Menu and its expanded state; overflowed actions are dormant (absent from the AT tree), represented instead by their menu items — so no action is announced twice. Toggle actions carry Toggled.

// on_activate requires an EventContext — use ignore.
use teksilo_widgets::toolbar::{Toolbar, ToolbarAction, ToolbarItem};
use teksilo_i18n::lit;
let _bar = Toolbar::new()
    .action(ToolbarAction::new(lit!("Save"), save_icon).on_activate(|ctx| { /* ... */ }))
    .action(ToolbarAction::new(lit!("Undo"), undo_icon).priority(-1))
    .item(ToolbarItem::flexible_space());

Touch and pen

Nothing to do here, and it is worth recording why: every command on the bar is an IconButton or a PopoverIconButton, so each one inherits the framework press, release activation and slide-off abort from the button family, and each is already 24 dp at Compact (IconButtonSize::Compact/Default). The bar itself carries only roving keyboard navigation and takes no press of its own. The overflow chevron is gated on the layout-derived is_overflowing signal, not on hover, so it is reachable by a finger without any reveal policy.

Density

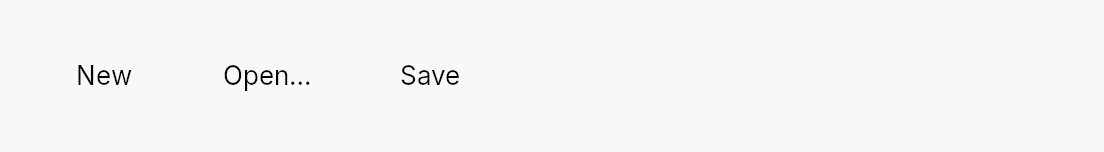

The picture above is the widget at TargetDensity::Compact, the mouse-and-keyboard ladder. Below is the same subject on the same canvas with only the ladder changed, so what moves is the density and nothing else — where the subject no longer fits, that is what the denser targets cost it at that size. See docs/density-and-targets.md.

Touch

API reference

📖 Full rustdoc API for this module

pub const TOOLBAR_HEIGHT_DEFAULT

Import: use teksilo::widgets::toolbar::TOOLBAR_HEIGHT_DEFAULT;

Toolbar design tokens.

#![allow(unused)]
fn main() {
pub const TOOLBAR_HEIGHT_DEFAULT: f32 = 40.0;
}

pub fn toolbar_height_default(...)

Import: use teksilo::widgets::toolbar::toolbar_height_default;

TOOLBAR_HEIGHT_DEFAULT raised to the density's target_size (24 / 32 / 44 dp). The identity at Compact.

#![allow(unused)]
fn main() {
pub fn toolbar_height_default(tokens: &InputTokens) -> f32;
}

pub const TOOLBAR_SPACING

Import: use teksilo::widgets::toolbar::TOOLBAR_SPACING;

#![allow(unused)]
fn main() {
pub const TOOLBAR_SPACING: f32 = 4.0;
}

pub fn toolbar_spacing(...)

Import: use teksilo::widgets::toolbar::toolbar_spacing;

TOOLBAR_SPACING scaled by the density's spacing_factor (1.00 / 1.15 / 1.30).

#![allow(unused)]
fn main() {
pub fn toolbar_spacing(tokens: &InputTokens) -> f32;
}

pub enum ToolbarOrientation

Import: use teksilo::widgets::ToolbarOrientation;

Layout axis of the toolbar.

#![allow(unused)]
fn main() {
pub enum ToolbarOrientation { /* variants */ }
}

Variants

• Horizontal — Items flow left-to-right (default).
• Vertical — Items flow top-to-bottom.

pub struct ToolbarAction

Import: use teksilo::widgets::ToolbarAction;

A toolbar command: a label + an icon (both required), plus optional tooltip/toggle, an activation handler, an overflow priority, and an always_overflow flag. Renders as an icon-only IconButton inline (the label is its tooltip + accessible name) and as a labelled MenuItem in the overflow menu.

#![allow(unused)]
fn main() {
pub struct ToolbarAction { /* fields */ }
}

Methods

pub fn new(label: impl Into<LocalizedString>, icon: impl Fn() -> IconWidget + 'static) -> Self

A new action with the given (translatable) label and icon factory, and a no-op handler. The label is the inline button's tooltip + accessible name (the button is icon-only); the icon factory builds the glyph for both the inline IconButton and the overflow menu row (IconWidget isn't Clone, so it is a factory).

pub fn menu(mut self, factory: impl Fn() -> MenuList + 'static) -> Self

Turn this action into a dropdown: its inline control becomes a PopoverIconButton that opens the MenuList built by factory (instead of a plain button that runs on_activate), and in the overflow it becomes a submenu. MenuList isn't Clone, so pass a factory that builds a fresh one. Mutually exclusive with on_activate / toggle (the menu owns the interaction).

pub fn tooltip(mut self, text: impl Into<LocalizedString>) -> Self

Plain-text tooltip shown after a hover delay (the inline button is icon-only; with none set, the label is used). Overrides any previously set rich tooltip — every setter clears the other so last-call wins.

pub fn rich_tooltip(mut self, key: impl Into<String>) -> Self

Attach a rich tooltip resolved from the app-wide tooltip registry. The key is looked up via TooltipRegistry at build time; the resolved body text supports inline markup (label, *italic*, **bold**) and the entry's shortcut / "more" fields are rendered automatically.

Overrides any previously set plain .tooltip(...) — every setter clears the other so last-call wins.

pub fn rich_tooltip_content(mut self, content: crate::tooltip::TooltipContent) -> Self

Attach a rich tooltip driven by inline TooltipContent — for one-off tooltips that aren't worth registering in the central catalog. Overrides any previously set plain .tooltip(...).

pub fn composite_tooltip(mut self, factory: impl Fn() -> Box<dyn Widget> + 'static) -> Self

Attach a composite tooltip whose body is built by factory — an arbitrary widget tree (tabbed sections, charts, conditional rows). Because ToolbarAction is Clone, the body is supplied as a factory closure (not a Box<dyn Widget> instance, which is not Clone); the closure is invoked to produce a fresh body for the inline button. Overrides any previously set tooltip — every setter clears the others so last-call wins.

pub fn enabled(mut self, enabled: impl Into<Prop<bool>>) -> Self (default: true)

Enabled state, static or reactive.

pub fn on_activate(mut self, f: impl Fn(&mut EventContext) + 'static) -> Self

Activation handler (tap / Enter / Space / AT click / menu activate).

pub fn toggle(mut self, state: Signal<bool>) -> Self (default: None)

Make this a checkable (toggle) action bound to state. Inline it reads as a pressed toggle button; in overflow as a checkmark menu item.

pub fn priority(mut self, priority: i32) -> Self

Overflow priority — actions with the lowest priority collapse into the menu first (NSToolbar semantics). Default 0.

pub fn always_overflow(mut self) -> Self

Always live in the overflow menu, never inline (WinUI secondary command).

pub trait ToolbarOverflow

Import: use teksilo::widgets::ToolbarOverflow;

A widget that knows how to represent itself in a Toolbar's overflow menu when it is collapsed (NSToolbar menuFormRepresentation / Qt QWidgetAction). Implement this on a widget and add it with ToolbarItem::collapsible to make it overflow into the chevron menu as the returned ToolbarAction (a menu row), instead of staying pinned.

For widgets that are best represented in the menu as themselves (a ComboBox, a slider) rather than as a one-shot menu row, use ToolbarItem::overflow_widget instead — it embeds a live widget in the menu.

#![allow(unused)]
fn main() {
pub trait ToolbarOverflow { /* associated items below */ }
}

Associated items

fn toolbar_menu_form(&self) -> ToolbarAction;

The menu-form representation shown when this widget overflows.

pub struct ToolbarItem

Import: use teksilo::widgets::ToolbarItem;

One slot in a Toolbar.

#![allow(unused)]
fn main() {
pub struct ToolbarItem { /* fields */ }
}

Methods

pub fn action(action: ToolbarAction) -> Self

A collapsible command.

pub fn custom(widget: impl Widget + 'static) -> Self

A pinned arbitrary widget (never collapses) — e.g. a search field. Make it collapsible with overflow_as.

pub fn custom_id(id: WidgetId) -> Self

A pinned arbitrary widget by pre-registered id.

pub fn collapsible(widget: impl Widget + ToolbarOverflow + 'static) -> Self

A collapsible widget that supplies its own menu form via ToolbarOverflow. When the bar is too narrow, the widget is hidden and its toolbar_menu_form() appears in the overflow menu.

pub fn overflow_as(mut self, menu_form: ToolbarAction) -> Self

Make a custom widget collapsible with an explicit menu row — the ToolbarAction shown when it overflows (NSToolbar menuFormRepresentation). Best for controls whose menu form is a single command; an icon-only inline control reuses its icon here as the menu item's leading glyph (pass it to ToolbarAction::new).

pub fn overflow_widget(mut self, factory: impl Fn() -> Box<dyn Widget> + 'static) -> Self

Make a custom widget collapsible by embedding a live widget in the overflow menu — the factory rebuilds the control (e.g. a ComboBox bound to the same signal) so it stays fully interactive while collapsed, instead of degrading to a one-shot menu row. Best for stateful inputs (combo boxes, sliders) that have no meaningful single "command" representation.

pub fn separator() -> Self

A separator line between groups.

pub fn flexible_space() -> Self

Flexible space that pushes the following items to the trailing edge (NSToolbar flexibleSpace). Collapses to nothing when over-constrained.

pub struct Toolbar

Import: use teksilo::widgets::Toolbar;

A command bar with automatic overflow. See the module docs.

#![allow(unused)]
fn main() {
pub struct Toolbar { /* fields */ }
}

Methods

pub fn new() -> Self

Create an empty toolbar with the default orientation (horizontal) and Compact, ghost icon buttons. Add commands with action or layout items with item.

pub fn item(mut self, item: ToolbarItem) -> Self

Add an item (action, pinned widget, separator, flexible space).

pub fn items(self, items: impl IntoIterator<Item = ToolbarItem>) -> Self

Add several items from an iterator, in order.

The loop form of item: reach for it when the command set is data-driven rather than written out call by call.

pub fn action(self, action: ToolbarAction) -> Self

Sugar for .item(ToolbarItem::action(a)).

pub fn actions(self, actions: impl IntoIterator<Item = ToolbarAction>) -> Self

Add several collapsible commands from an iterator.

The loop form of action, for a command set built from data rather than spelled out one call at a time.

pub fn child(self, widget: impl teksilo_core::IntoTeksiChild) -> Self

Add a pinned inline child widget (sugar for .item(ToolbarItem::custom(widget))). Pinned widgets never collapse into the overflow menu — use action for collapsible commands.

pub fn children( self, iter: impl IntoIterator<Item = impl teksilo_core::IntoTeksiChild>, ) -> Self

Add several pinned inline children from an iterator.

The loop form of child. Like child, every widget added this way is pinned and never collapses into the overflow menu.

pub fn child_opt(self, widget: Option<impl teksilo_core::IntoTeksiChild>) -> Self

Attach widget when it is Some, and do nothing when it is None.

The conditional-child form. teksu!'s if without an else lowers to this, and it is what cond.then(|| w) is for in a builder chain. None adds no arena node, so nothing is laid out, painted, or published to the accessibility tree, and a stack applies no spacing around it.

pub fn orientation(mut self, orientation: ToolbarOrientation) -> Self

Set the layout axis (default ToolbarOrientation::Horizontal).

pub fn button_size(mut self, size: IconButtonSize) -> Self

Size variant applied to every action's inline IconButton and the overflow chevron (default IconButtonSize::Compact).

pub fn button_style(mut self, style: impl IconButtonStyle) -> Self

A toolbar-wide IconButtonStyle applied to every action button and the overflow chevron — one shared style for the whole bar (the icon-button analogue of theme.style_slots). Default: the theme's flat / ghost icon-button style.

pub fn spacing(mut self, spacing: f32) -> Self (default: None)

Gap between consecutive toolbar items in logical pixels. Overrides the density's toolbar_spacing (TOOLBAR_SPACING at Compact).

pub fn label(mut self, label: impl Into<LocalizedString>) -> Self

Override the accessible name (default: the localized "Toolbar").

pub fn compact(mut self, compact: bool) -> Self

Compact (shrink-to-fit) sizing. By default a toolbar fills the main extent it is offered (it is meant to span a full command bar). In compact mode it instead reports its natural content extent as the wanted size and is shrinkable down to its collapsed minimum (the pinned items plus the overflow chevron) — so it sits as a tight cluster when there is room, composes next to other widgets (e.g. a title and a Spacer) without claiming their space, and still collapses excess actions into the ⌄ menu when the slot is genuinely too narrow. Use it to embed a toolbar in a constrained header rather than a full-width bar.

pub fn is_overflowing(&self) -> Signal<bool>

Reactive signal that is true whenever any action is collapsed into the overflow menu (WinUI IsOverflowOpen-adjacent introspection).
